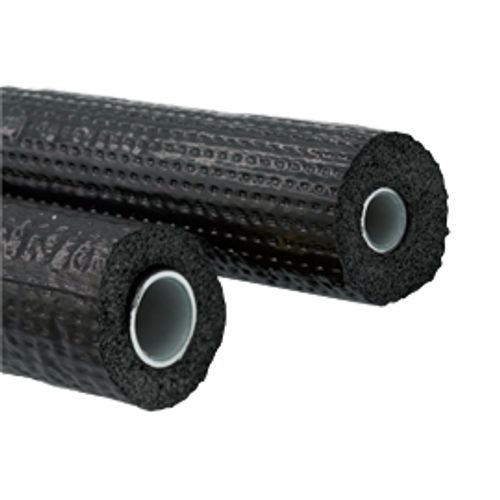

3/8" NPS x 100 ft. PERT-AL-PERT Refrigerant Line Set (3/4" Insulation)

Python is a PE-RT / AL / PE-RT line set and compression fitting system designed for both split system and mini-split system applications. It comes in both insulated and non-insulated for use in HVAC systems for industrial, commercial and residential applications.

Features:

• For HVAC Residential & Commercial Applications
• Lightweight: Half the Weight of Copper Pipe
• ICC-ES PMG-1675 Listed
• Product Tested and Listed to ASTM F3506-21: Standard Specification
• Chemical, UV & Kink Resistant
• No Need for a Torch on Site

Specs:

• Maximum Design Pressure: 1/4" - 3/4" at 700psi, 7/8" at 650psi
• Maximum Design Temperature: 203F
• ID & Flow Rates: Same as Copper Pipe
• Approved Refrigerants: R410a, R32, R454b
• Pipe Marked Every Foot

Insulation:

• Completely Recyclable
• Non-Porous, Fiber-Free: Closed-Cell Insulation Resists Mold Growth
• Manufactured Without CFCs, HCFCs, HFCs, PBDEs and Formaldehyde
• Year-Round Pipe Protection from Freezing and Condensation
• Tear Resistant

Technical Requirements:

• Standard Covers: UV Requirements, Sustained & Burst Pressure Testing, Refrigerant Expo-Sure Testing, Pull Testing, Vibration Testing, Fatigue Testing
• Fitting Section of the Standard Covers: Burst Pressure Testing, Sustained Pressure Testing, Thermocycle Testing
• Pipe Shall Be Cut with a Tubing Cutter
• Pipe Shall Be Reamed and Chamfered with a Python Chamfering Tool
• Pipe Fittings Shall Be Installed with a Torque Wrench to the Specified Torque
