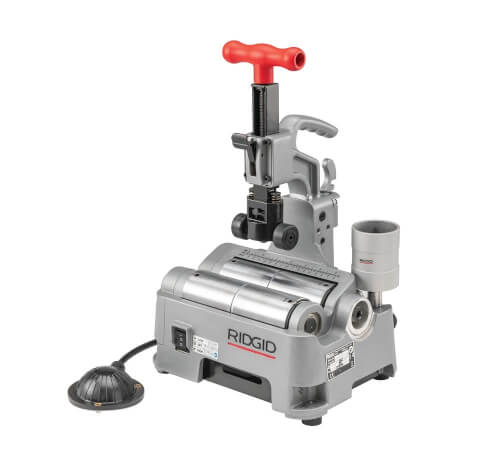

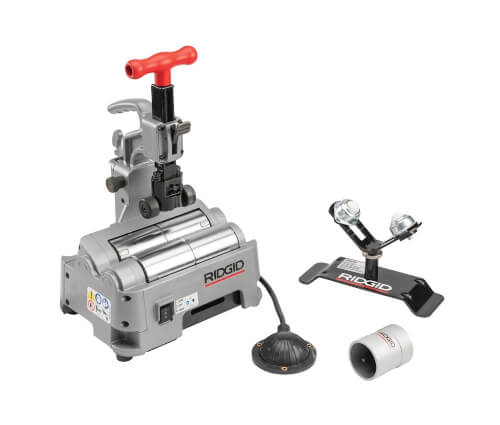

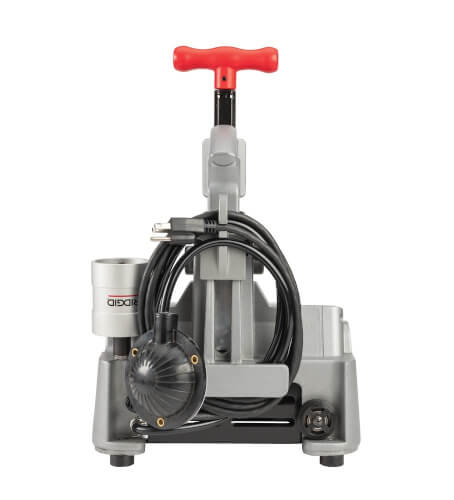

PTC-400 Power Tubing Cutting Machine For Copper and Plastic with PC-116 TS Tube Stand, 1/2" to 4"

The PTC-400 Power Tubing Cutter is an efficient, portable, durable and reliable professional tubing cutting machine. Quickly cut stainless steel, carbon steel, copper aluminum, and plastic. The portable design enables it to be easily carried to, from and around the jobsite. PTC-400 Power Tubing Cutter is an ideal choice for onsite projects of commercial, residential and industrial work environments.

Features:

• Portable: At a weight of 32 lbs., compact size, integrated handle and cord wrap makes it convenient to carry and easy to store
• High Efficiency: Quick-acting engagement feature and easy to use feed screw ensure high-speed cutting.
• Quality Cuts: Optimal cutter wheel profile allows for an efficient cold cutting operation resulting in a smooth quality cut
• Simple Control: Two rotating speeds for smooth cuts on long or short tubes. Foot bulb allows for hands free control of the power
• Easy Maintenance: Save time on maintenance with the unique cutter wheel cartridge design that simplifies replacement without tools

Specifications:

• Nominal Pipe Capacity: 1/2" to 4" (12mm to 100mm)
• Actual Cutting Capacity: 1/2" - 4.5" (12mm to 116mm)
• Nominal Reaming Capacity: 1/2" - 2" (16mm to 50mm) (optional accessory)
• Maximum Tube Length: 20' (6m)
• Motor Type: Universal
• Motor Voltage: 110V - 120V AC
• Motor Current: 5.8 Amp
• Motor Frequency: 50/60 Hz
• Motor Power: 705W
• Roller Rotational Speed: 225/385 RPM
• Controls: I-Low/0-Off/II-High and On/Off Foot Switch
• Weight: 32 lbs (14.5 kg)
• Overall Dimensions: 11.6" x 9.4" x 15.9" (295mm x239mm x 403mm)
• Operating Temperature: -4 to 122 degrees F (-20 to 50 degrees C)
