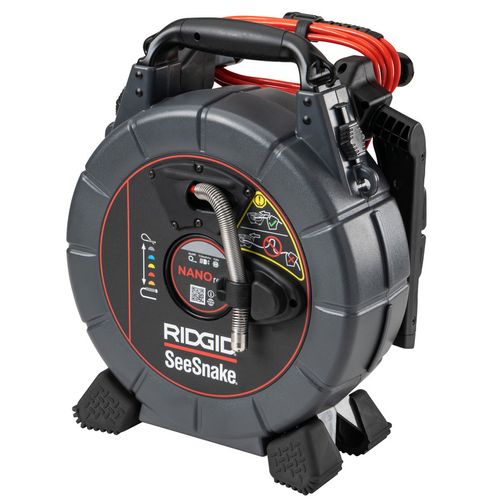

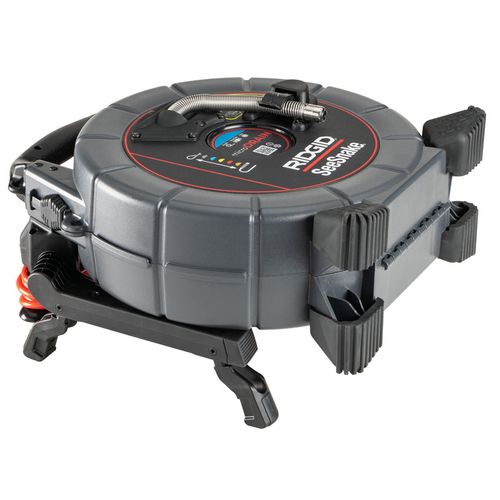

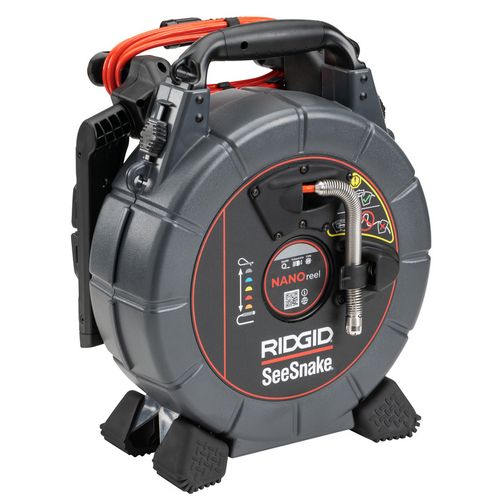

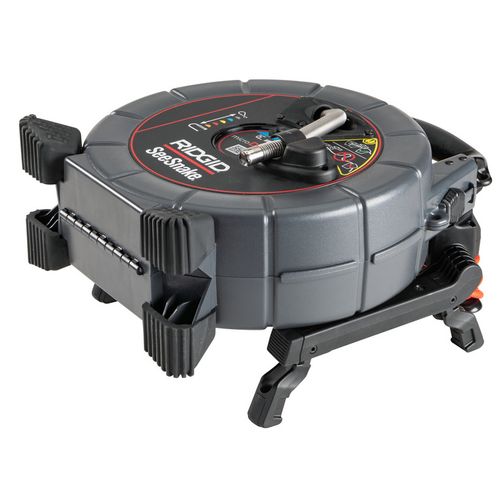

Seesnake Nanoreel Inspection Camera

The RIDGID SeeSnake NANOreel inspection camera opens up new possibilities in drain inspection with the smallest-diameter camera and most flexible push cable of all SeeSnake systems. This reel is ideal for long-run, small-diameter runs. Applications where only borescopes could reach can now be inspected using the NANOreel inspection camera. Boiler tubes, supply lines, sprinkler systems and a wide array of specialty applications can be inspected using the NANOreel inspection camera.

Features:

• Maneuverability - Small 15mm camera head with ultra flexible push cable navigates tight spaces.
• Small 15mm camera head with ultra flexible push cable navigates tight spaces. - Lightweight and compact carrying case design is easy to carry to jobsites and store in between.
• Stability - Built-in kickstand can be used upright for tight spaces, at an angle for added leverage or on four feet to accommodate the CSx Via.
• Durability - Hardened stainless steel camera head & spring assembly is durable and reliable for a long service life.
• Visibility - Camera heads feature long-lasting high-efficiency LEDs that provide greater views inside pipes.
• Camera heads feature long-lasting high-efficiency LEDs that provide greater views inside pipes. - Camera heads feature long-lasting high-efficiency LEDs that provide greater views inside pipes.
• Versatility - Use with any SeeSnake monitor or Wi-Fi Hub.

Specifications

• Camera Diameter: 15.5 mm
• Camera Type: Fixed
• Resolution: 656 x 492 pixels
• Line Capacity: 1" to 2" (25 mm to 51 mm)
• Push Cable Length: 82 ft (25 m)
• Push Cable Diameter: .28 in (7.2 mm)
• Cable Flexibility: Ultra Flex
• Push Cable Minimum Bend Radius: 1 in (25 mm)
• Sonde: 512 Hz, Integrated
• Weight: 12.7 lbs (5.7 kg)
• Length: 13.3 in (337 mm)
• Width: 8.8 in (224 mm)
• Height: 16.2 in (411 mm)
• Drum Diameter: 12 in (305 mm)
