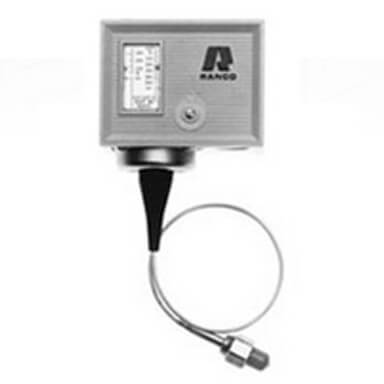

Main product image of Low Temperature Control w/ 96" Capillary (-20 to 70°F)

Hover image to zoom

Low Temperature Control w/ 96" Capillary (-20 to 70°F)

Name: Low Temperature Control w/ 96" Capillary (-20 to 70°F)
Brand: Ranco
SKU: O60-109
Price: 161.74 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Brand:

Ranco

SKU:

O60-109

Rating:

(1)

Q&A:

(0)

Low Temperature Control w/ 96" Capillary (-20 to 70°F)

Hover image to zoom

O60-109 has been discontinued

Discontinued March 21, 2025

This product has been discontinued.

MANUALS (2)

Competitive Cross Reference

Brochure

Competitive Cross Reference

Brochure

Product Highlights

–

-20°F Min Temp

70°F Max Temp

-20°F to 70°F

3.5° to 35°F

SPST

Description

–

Recognizing the need for flexibility in design of refrigeration equipment, these controls offer a wide selection for such products as self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases.

Features

Maximum adjustment accuracy with 7 revolution range adjustment screws
NEMA 1 enclosure with non-conductive cover
Front-located captive cover screw
Large easy-to-read scale plate
Universal mounting and compact design
Laser-welded bellows for extended life
Virtually unaffected by ambient temperature
10 times the setting sensitivity of most other wide range controls
Gas-filled, nonposition-sensitive bulb
Adjustable differential

Specs

–

Min Temp (F):	-20°F
Max Temp (F):	70°F
Temperature Range (F):	-20°F to 70°F
Differential:	3.5° to 35°F
Capillary Length:	96"
Bulb Size:	3/8" x 6"
Switch Action:	SPST
