REFMATE-2-CA-WTC, Two-Way Digital Manifold
Hover image to zoom

REFMATE-2-CA-WTC, Two-Way Digital Manifold

Brand:
Refco
SKU:
4688127
Rating:
(0)
Q&A:
(0)
REFMATE-2-CA-WTC, Two-Way Digital Manifold
Hover image to zoom
$704.57 each
Out of Stock
Out of Stock
Get it Tue, Mar 12 - Tue, Mar 19
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Material icon
Aluminum

Description

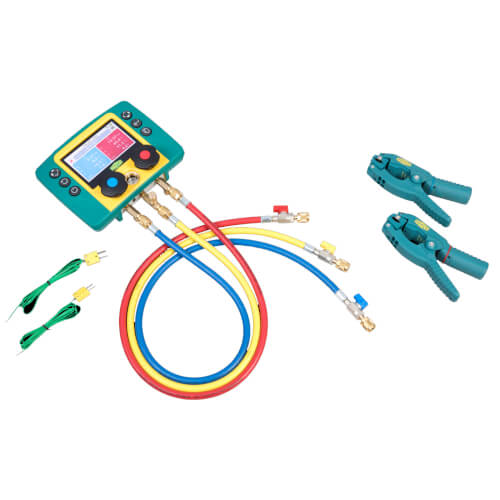

The REFMATE is the Digital Manifold for the professional refrigeration engineer. It communicates wirelessly with temperature clamps, pressure gauges, and the scale, and documents all measured values in the device during long-term measurements. All data can be interpreted and displayed via the app REFMESH. The latest refrigerant and firmware updates can be easily installed via PC.

Features:
  • Patented analog display (US patent 9'448'140)
  • Large 4.3" TFT display
  • Indication of superheating and subcooling
  • Intuitive control via robust push buttons
  • High precision with accuracy class 0.5
  • Flexible power supply (AA batteries or USB)
  • Wireless communication with REFMESH App and other devices
  • All mechanical components are available as spare parts
  • Lockable for long-term measurements
Specifications
  • Number of Ways: 2-way
  • Pressure Range: -14 - 870 psi
  • Accuracy Class: 0.5 (+/-0.5%)
  • Pressure Scale: bar | psi | kPa | MPa | kg/cm2
  • Resolution: 0.001 bar, 0.5 psi, 1 kPa, 0.0001 MPa, 0.01 kg/cm2
  • Temperature measuring range: -40 - 257 F
  • Temperature Accuracy: +/-1
  • Temperature Resolution: 0.1 C / 0.1 F
  • Sensor type: K-type /Piezo Sensor
  • Operating Temperature Range: -4 -122 F
  • Storage Temperature Range: -4 -140 F
  • Battery: 4 x AA / 3 x AAA / Alternative Power Supply USB Mirco-B
  • Ingression Protection: IP42
  • Operating Hours: 50 h at low operation
  • Gas Connection: 1/4" SAE
  • Signal Range: 300 ft
  • Number of Hoses: 3
  • Length: 60"
  • Device connection: 1/4" SAE
  • System Connection: 1/4" SAE
  • Ball Valve: Yes
  • Sealing: Neoprene
  • Packaging: Sturdy plastic case
  • Material: Aluminium/Brass/ABS/TPE
  • Color: yellow (RAL 1023) | green (RAL 6026)
  • Standards: CE / FCC / IC / RCM / RoHS / REACH
  • RoHS Conformity: Yes

Specs

Product Type:

Manifold

Material:

Aluminum

Type:

Digital

Operating Temp Range:

-4° to 122°F

Accuracy:

+/- 0.5%
