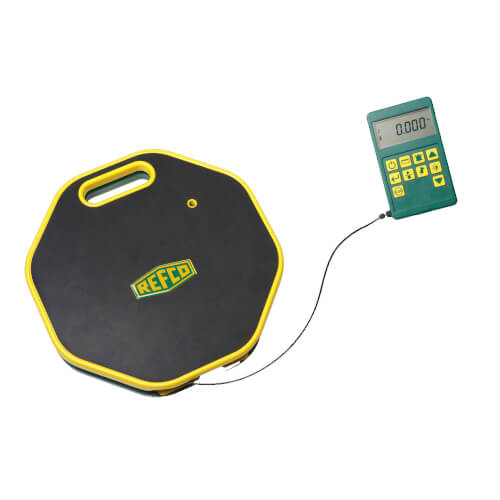

REFSCALE Electronic Charging Scale

The electronic charging scale REFSCALE can easily be connected to the REFMATE and/or REFMESH. It consists of two solid aluminum plates on which large refrigerant cylinders can be safely placed thanks to the octagonal shape. The highly sensitive measuring cell indicates the exact weight even with asymmetrically positioned cylinders. Set the required function sensor via the REFMESH App. In addition, an adapter (10612-REF) for small refrigerant cans can be mounted on the thread, which makes handling easier.

Features:

• Connects wireless with REFMATETM and/or REFMESHTM
• High accuracy and automatic resolution
• Programmable alarm
• Can be calibrated in the field with reference weights
• Refrigerant tank capacity
• Measures weight in kg, lb and oz
• Flexible power supply with battery or via USB

Specifications

• Accuracy: +/- 0.05%
• Measuring Range: 0 - 240 lb
• Units: kg, lbs & oz
• Resolution: 2 g, 0.005 lbs, 0.1 oz
• Operating Temperature Range: 14 - 122 F
• Ingression Protection: IP42
• Battery: 4 x AAA
• Operating Hours: 30 h
• Cable Length: 60"
• Scope of Supply: Control box | Batteries | Pouch | Instruction manual
• Packaging: Cardboard box
• Material: Aluminium
• Color: yellow | green
• Standards: EN 61326, EN 62479, EN 301 489-1, FCC, CE
• RoHS Conformity: Yes
