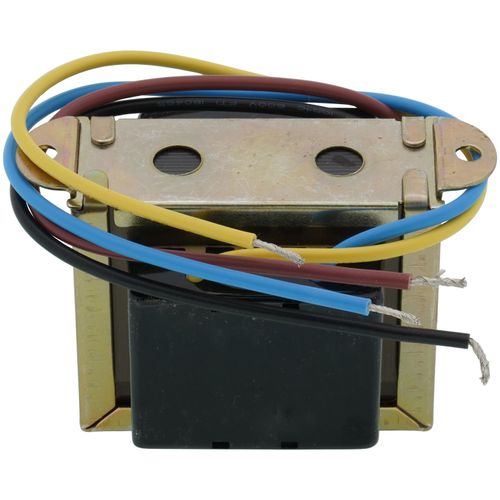

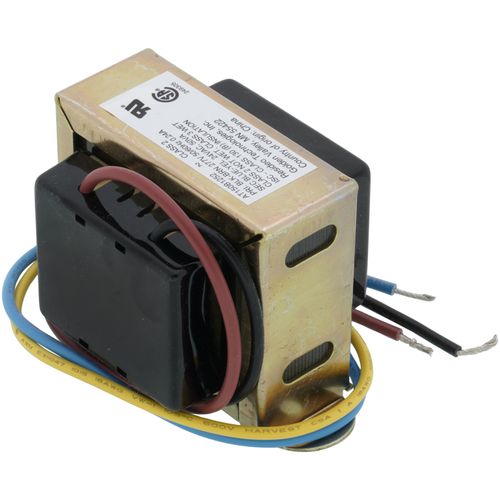

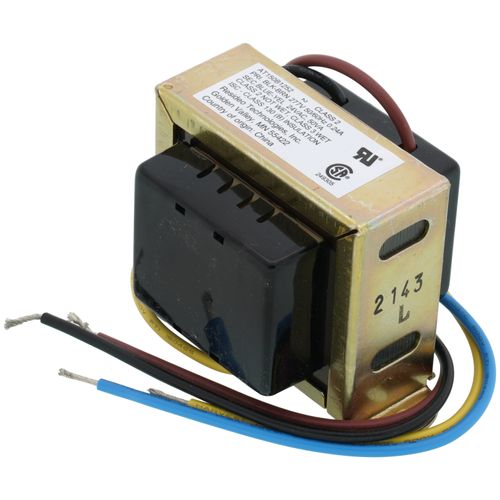

Foot Mounted 277 Vac Transformer with 9 in. Lead Wires and Plastic End Caps, AT150B1252
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$50.34 each
In Stock
Order by today, receive Thursday
MANUALS (4)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Foot
-20°F - 105°F
1-11/16"
3-5/8" Depth
3-1/2" Width
Description
–
Provide power to 24 Vac circuits in heating/cooling control systems. Intended for use in systems with predictable, uniform loads. Can be used in any application that does not exceed the listed ratings.
Features
Specifications
Features
- Rated at 50 VA.
- Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
- Meet NEC Class 2 requirements.
- Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
Specifications
- Description: Foot mounted 277 Vac Transformer with 9 in. leadwires and plastic end caps
- Electrical Ratings: 277 Vac
- Electrical Ratings -Secondary Voltage: 27 V.O.C.
- Frequency: 60 Hz
- Mounting: Foot-mounted
- NEMA Rating: No
- Electrical Connections (Primary)(in): 9 in. leadwires with 1/4 in. male quick-connects
- Electrical Connections (Secondary)(in.): 9 in. leadwires with 1/4 in. male quick-connects
- Electrical Ratings -Output: 24 Vac at 50 VA
- Dimensions 1-11/16 in. high x 3-1/2 in. wide x 1-3/4 in. deep
- Temperature Ratings: -20 F to +105 F
- Includes: Plastic end caps
Specs
–
| Application: | 24v Controls |
|---|---|
| Mount: | Foot |
| Voltage (Primary): | 277V |
| Voltage (Secondary): | 27.5 V.O.C. |
| Hertz: | 60 50 |
| Temperature Range (F): | -20°F - 105°F |
| NEMA Rating: | None |
| VA Rating: | 50 |
| Height: | 1-11/16" |
| Depth (Inches): | 3-5/8" |
| Width (Inches): | 3-1/2" |
| Features: | Plastic End Caps |
| Wiring: | 9" leadwires 1/4" Quick Connects |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
Exactly what I needed
An exact replacement for an old 277v transformer I had. Fast shipping too
Kai
Orlando
2 years ago
Verified Buyer
Was this review helpful to you?
Needed for NEST Thermostat
This is the perfect transformer to use with the nest thermostat. The nest thermostat has a very limited range of voltage that it can operate on without damaging itself. If you use this 277 volt transformer on a 240 V circuit, the secondary voltage is perfect for the nest. The nest requires exactly 24 volts. Most transformers have a secondary voltage of 27.5 volts. Running a nest thermostat at that higher voltage will cause it to fail within a month. This transformer fixes that.
bottleworks
Central NC
13 years ago
Verified Buyer
