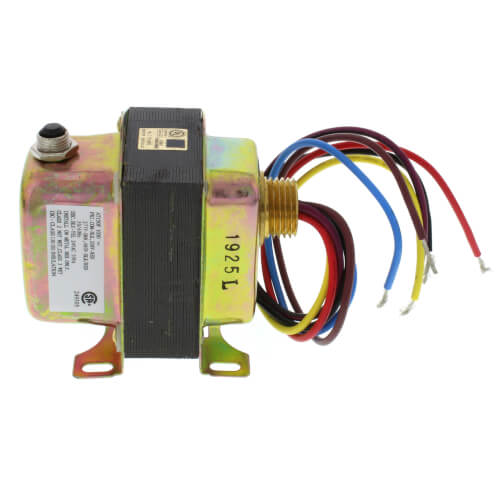

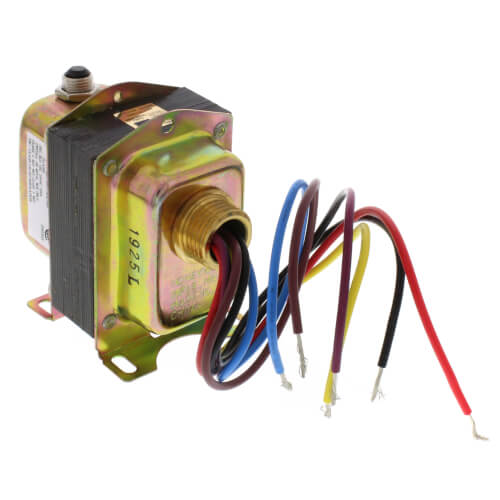

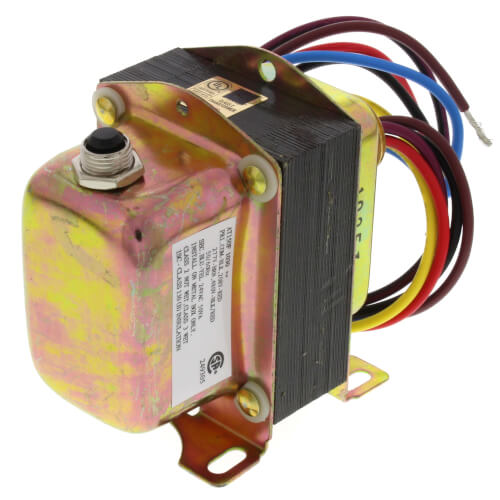

208/277/480 Vac Transformer w/ Button for Manually Resetting Circuit Breaker, AT150F1030
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$63.36 each
In Stock
Order by 6PM, receive Tomorrow
MANUALS (4)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Plate, Panel
-20°F - 105°F
3-3/16"
3-5/8" Depth
Description
–
Plate or panel mounted 208/277/480 Vac Transformer with 9 in. lead wires, button for manually resetting the circuit breaker and metal end bells.
Specs
–
| Application: | 24v Controls |
|---|---|
| Voltage (Primary): | 208V 277V 480V |
| Voltage (Secondary): | 27.5 V.O.C. |
| Mount: | Plate Panel |
| Hertz: | 60 |
| Temperature Range (F): | -20°F - 105°F |
| VA Rating: | 50 |
| NEMA Rating: | None |
| Height: | 3-3/16" |
| Width: | 2-3/16" |
| Depth (Inches): | 3-5/8" |
| Features: | Metal End Bells |
| Wiring: | 9" leadwires |
| Electrical Output: | 24 Vac at 50 VA |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4 out of 3 reviews
67% would recommend this product
5 star
67%
4 star
0%
3 star
0%
2 star
33%
1 star
0%
Showing 1-3 of 3 reviews
Transformer worked great in a rtu, would definitely buy agai
Replaced an old burnt up original transformer with this one because it had 480 volt line. The first one that came out had no secondary voltage out of it and they replaced it no problem!
Neptune
Wadsworth Illinois
4 years ago
Verified Buyer
Was this review helpful to you?
Circuit breaker failed in my case
I replaced my transformer with this model to avoid burning up from too much current on the secondary side. The transformer worked for a few weeks but no outage from the AC either. I have not tracked down the intermittent short in the system, relay or thermostat wires. Nevertheless this little guy did not trip the breaker when the short hit me this week. I replaced the transformer and put a bus fuse in line. The short has hit me again but the new transformer survived the fuse did it's job. I do not recommend this transformer if you are using it for the built in circuit breaker.
Computer T
Whitehosue
6 years ago
Was this review helpful to you?
Simple and solid I have a spare on hand now
I used this to replace my HVAC transformer that went out. The OEM replacement went out as well. So this one will trip if the current goes to high. It also helped to fix the problem in the first place, a dirty circuit board was shorting out.
Computer T.
Whitehosue
6 years ago
Verified Buyer
Was this review helpful to you?
