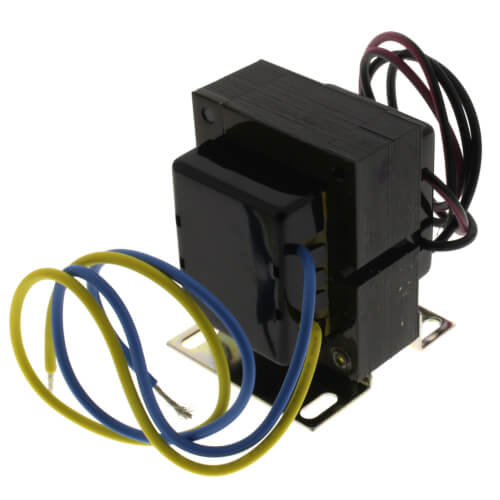

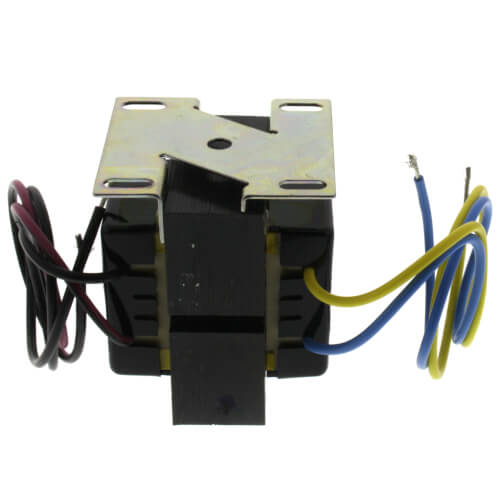

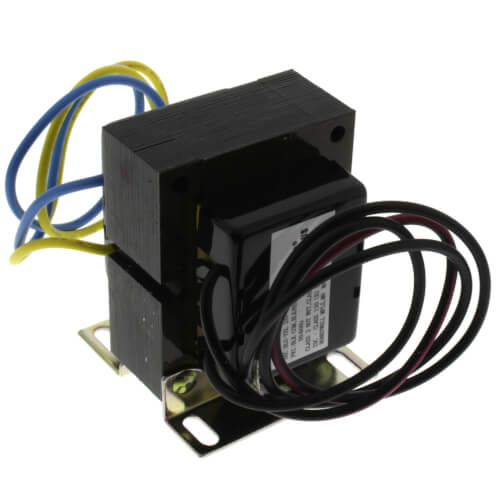

Foot Mounted 480 Vac Transformer with 12 in. Lead Wires and Energy Limiting Overload Protection, AT87A1155
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$94.99 each
In Stock
Get 5 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Plate, Foot
-20°F - 105°F
2-15/16" Depth
Description
–
Used primarily for powering 24V air conditioning circuits. Can also be used in other applications that do not exceed the listed ratings.
Features
Specifications
Features
- Meets NEC Class 2 not wet, Class 3 wet and UL 1585 requirements.
- Meets NEMA Standard DC20-1992.
- Transformer marked NEMA Type E.
- Overload protection provided.
- Color-coded leadwires for primary connections.
Specifications
- Description: Foot mounted 480 Vac Transformer with 12 in. lead wires and energy limiting overload protection
- Electrical Ratings-Primary: 480 Vac
- Electrical Ratings-Secondary: 26.5 V.O.C.
- Frequency: 60 Hz
- Frequency: 50 Hz
- Mounting: Foot mounted
- NEMA Rating: NEMA TYPE E
- Electrical Connections (Primary)(in.): 12? Lead Wires
- Electrical Connections (Secondary)(in.): 12? Lead Wires
- Electrical Ratings-Output: 24 Vac at 48 VA
- Dimensions: 2-15/16 in. deep x 2-7/32 wide
- Temperature Ratings: -20 F to +105 F
- Includes: Energy limiting overload protection
Specs
–
| Application: | 24v Air Conditioning Circuits |
|---|---|
| Mount: | Plate Foot |
| Voltage (Primary): | 480V |
| Voltage (Secondary): | 26.5 V.O.C. |
| Hertz: | 50 60 |
| Temperature Range (F): | -20°F - 105°F |
| Depth (Inches): | 2-15/16" |
| Width: | 2-7/32" |
| NEMA Rating: | Type E |
| VA Rating: | 48 |
| Wiring: | 12" Leadwires |
| Electrical Output: | 24 Vac at 48 VA |
