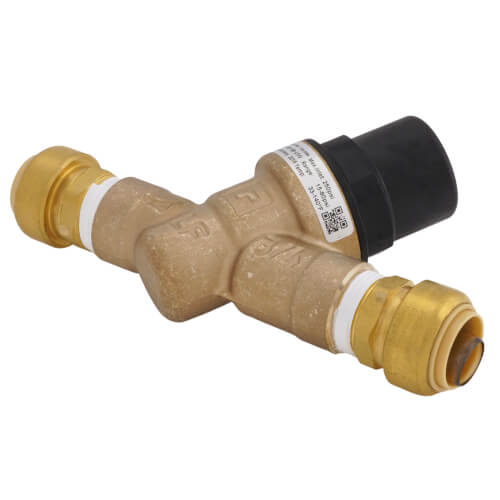

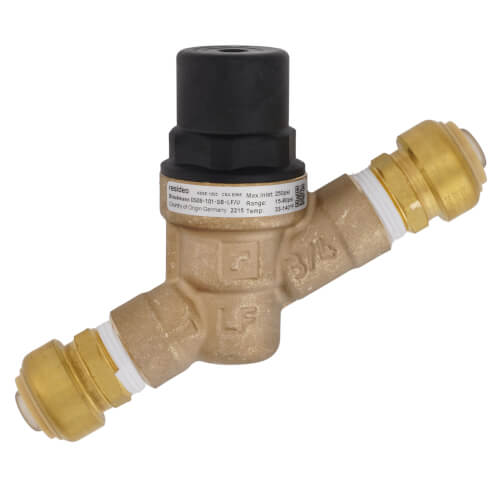

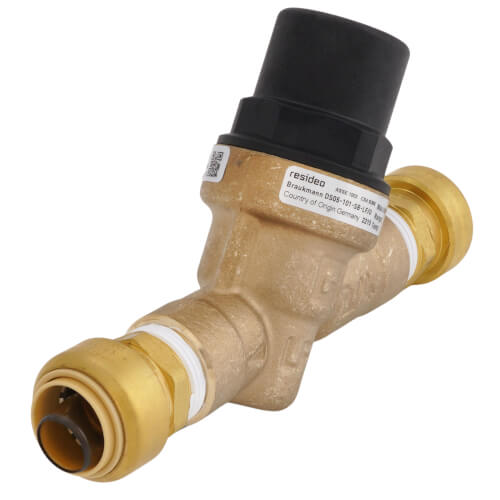

3/4" Push Connect Pressure Regulating Valve for DS05 (LF)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$77.54 each
In Stock
Order by today, receive Wednesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Bronze
250 MAX PSI
Push-Fit x Push-Fit Connection
FNPT
FNPT
3/4"
Description
–
Overview:
The Resideo Braukmann DS05 is a high-quality balanced pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It has a simple design with NPT or pre-assembled Push Connect and PEX F-1960 fittings. Available in 3/4" and 1", the six SKUs require no additional parts, making it a low-cost go-to for every new construction. It is suitable for potable water and irrigation applications, both indoor and outdoor.
Features:
The Resideo Braukmann DS05 is a high-quality balanced pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It has a simple design with NPT or pre-assembled Push Connect and PEX F-1960 fittings. Available in 3/4" and 1", the six SKUs require no additional parts, making it a low-cost go-to for every new construction. It is suitable for potable water and irrigation applications, both indoor and outdoor.
Features:
- No serviceable parts.
- Set static pressure between 15–80PSI adjustment range from the convenient tamper-resistant screwdriver slot.
- Simple design with NPT or pre-assembled Push Connect and PEX F-1960 fittings.
Specs
–
| Size: | 3/4" |
|---|---|
| Max Pressure (PSI): | 250 |
| Inlet Type: | FNPT |
| Outlet Type: | FNPT |
| Max Inlet Pressure: | 250 PSI |
| Operating Temp Range: | 140°F MAX |
| Material: | Bronze |
| Lead Free: | Yes |
| Connection Method: | Push-Fit |
| Connection Type: | Push-Fit x Push-Fit |
