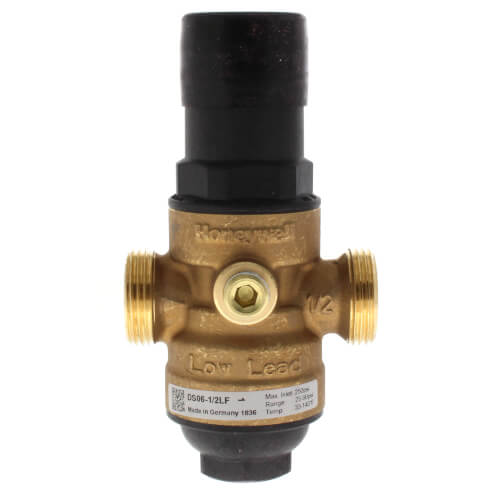

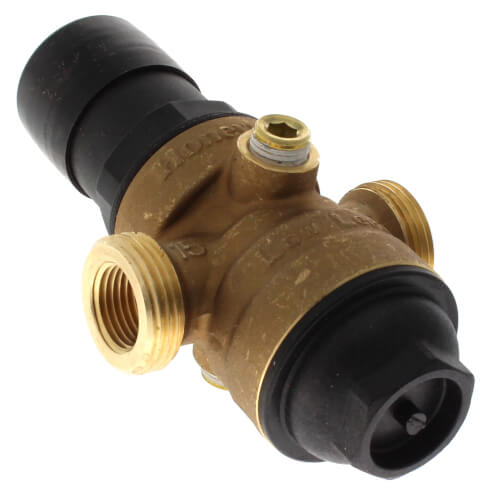

1/2" NPT DialSet Pressure Regulating Valve Body (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$90.27 each
In Stock
Get 12 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
MANUALS (2)
This item replaces: DS05C1006
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Bronze
90 MAX PSI
25 PSI
1/2"
Yes
Description
–
Overview
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Features
Specifications
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Features
- Built-In Dial-Set - no gauge is needed to install or set static pressure.
- Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable
- Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications.
- Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, single union or double-union configurations.
- 1/4" NPT tap accessible from both sides to validate output
- Built in strainer to simplify maintenance
- Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant
Specifications
- Operating Temperature Range: 140 F Maximum
- Connection Type: Female NPT Threaded Inlet & Outlet Externally threaded for Unions
- Outlet Pressure Adjustment Range: 25-90 PSI
- Max. Inlet Pressure Rating: 250 PSI
- Gauge Tap: 1/4 in. NPT (two, one on each side of body).
- Reducing Ratio: 10:1 Maximum
- Union Fittings: Union Body, No Tailpieces
- Approvals, IAPMO: Listed
Specs
–
| Size: | 1/2" |
|---|---|
| Pressure Range: | 25 to 90 PSI |
| Min Pressure (PSI): | 25 |
| Max Pressure (PSI): | 90 |
| Max Inlet Pressure: | 250 PSI |
| Operating Temp Range: | 140°F MAX |
| Material: | Bronze |
| Gauge: | none |
| Reduction Ratio: | 10:1 max |
| Features: | Calibrated Adjustment Dial |
| Lead Free: | Yes |
| Product Type: | Valve Body |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Easy to use
This has multiple pipe size connections, very easy to change setting. I've used 7 on various jobs, work well on drip irrigation systems.
Mot
Las vegas
7 years ago
Verified Buyer
Was this review helpful to you?
Water pressure working with me now!
The valve has brought a 110 psi main line city water pressure under sure and quiet control.It arrived preset at 50 psi and was showing 55 psi on line.A very easily adjusted pressure is accomplished by loosening a screw and hand rotating the adjuster knob but I had left this as is since delivery and I now have far quieter piping and confidence in a newly installed indirect water heater being protected from destructive pressure.Great quality at a good price from Supply House!
jhc1115
New Jersey
11 years ago
Verified Buyer
Was this review helpful to you?
Finally!
A PRV with an integral pressure indicator! Exactly what I have been looking for. Very easy to use. Compact size. Great price. I bought an extra for the future.
Matt
Philadelphia, PA
11 years ago
Verified Buyer
Was this review helpful to you?
