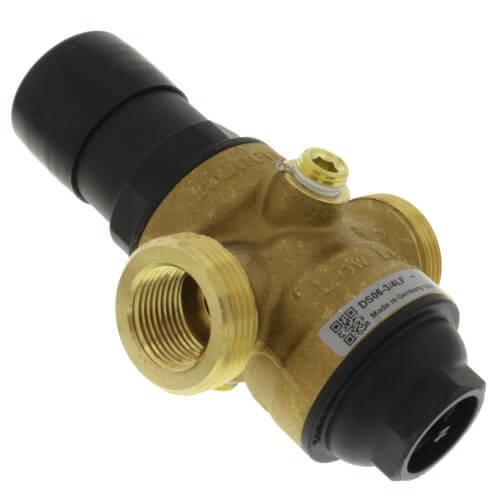

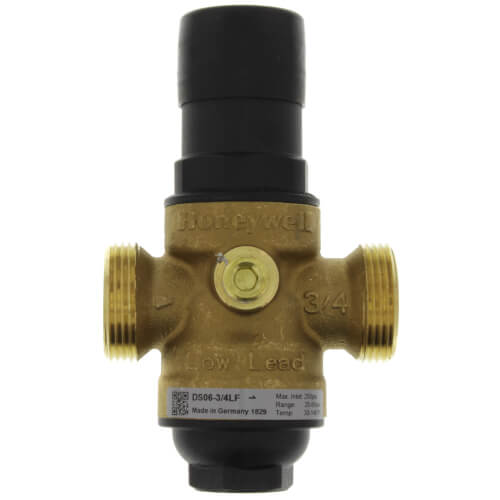

3/4" NPT DialSet Pressure Regulating Valve Body (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$90.90 each
In Stock
Get 30 Tomorrow, Jul 2
Order by 6PM, receive Tomorrow
MANUALS (2)
This item replaces: D05T1011, DS05C1030
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Bronze
90 MAX PSI
25 PSI
3/4"
Yes
Description
–
Overview
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Specifications
Features
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Specifications
- Dimensions: 5 1/4" High x 3 3/8" Long
- Operating Temperature Range: 140 F Maximum
- Connection Type: Female NPT Threaded Inlet & Outlet Externally threaded for Unions
- Outlet Pressure Adjustment Range: 25-90 PSI
- Max. Inlet Pressure Rating: 250 PSI
- Gauge Tap: 1/4 in. NPT (two, one on each side of body).
- Reducing Ratio: 10:1 Maximum
- Union Fittings: Union Body, No Tailpieces
- Approvals, ASSE: Certified 1003-2016
- Approvals, IAPMO: Listed
Features
- Built-In Dial-Set - no gauge is needed to install or set static pressure.
- Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable
- Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications.
- Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, single union or double-union configurations.
- 1/4" NPT tap accessible from both sides to validate output
- Built in strainer to simplify maintenance
- Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant
Specs
–
| Size: | 3/4" |
|---|---|
| Pressure Range: | 25 to 90 PSI |
| Min Pressure (PSI): | 25 |
| Max Pressure (PSI): | 90 |
| Max Inlet Pressure: | 250 PSI |
| Operating Temp Range: | 140°F MAX |
| Material: | Bronze |
| Gauge: | none |
| Reduction Ratio: | 10:1 max |
| Features: | Calibrated Adjustment Dial |
| Lead Free: | Yes |
| Product Type: | Valve Body |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 8 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-8 of 8 reviews
Works great so far
More even pressure & better all around than the Watts regulator it replaced.
None
Selmer, TN
3 years ago
Verified Buyer
Was this review helpful to you?
Worked great, would buy again
Customer service/sales was awesome. Helped me locate a matching pressure regulator to replace my failing 24 year old regulator and it arrived on time! Would absolutely buy from these guys again.
Do-it-all-Dan
Knoxville TN
4 years ago
Verified Buyer
Was this review helpful to you?
I would buy from them again
Really quick shipping and part was perfect fit!
Dorf
Montville CT
6 years ago
Verified Buyer
Was this review helpful to you?
Great Pressure Regulator
I've installed two of these regulators now with no issues. It has a debris screen in the bottom that is easily serviceable and prolongs the life of the regulator without the need for a strainer wye. The pressure indicator when checked against a gauge is within just a few psi, nearly dead on and is the easiest to adjust, giving homeowners with little know how the ability to adjust their pressure later on without special knowledge or gauges. The price is right and the quality is far beyond what I've found elsewhere at this price point. Only gripe: the second time I ordered one, it shipped without the union.
Abcdefg
Southern Arizona
7 years ago
Verified Buyer
Was this review helpful to you?
Water Pressure Reducing Valve
Replaced our reducing valve coming into the house. I found out our old one was partially plugged and stuck so I couldn't adjust the water pressure coming into the house.
nag
Reiles Acres, ND
8 years ago
Verified Buyer
Was this review helpful to you?
Geat place
Shipping was super fast
very good company to do business with
Bob
Connecticut
11 years ago
Verified Buyer
Was this review helpful to you?
Excellent product and SupplyHouse is excellent.
SupplyHouse.com was excellent to purchase from,simple and quick delivery. PRV is being used as portable unit in campgrounds on RV. Price surpassed any other I could find for quality valve.
RanDenali 2015
Brooksville,Florida
11 years ago
Verified Buyer
Was this review helpful to you?
great quality
easy to install good quality
aaron
medford or.
12 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
5 Questions5 Questions
Q: Can this be buried in an outside application if it's in a valve box?
Asked by Dale 8 years ago
Add your answer
Verified Reply- Supplyhouse StaffThis unit should not be installed outside.
Was this review helpful to you?
Q: Will this pressure reducer function for long in a full sunlight application?
Asked by steve 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffYes that should work fine outdoors.
Was this review helpful to you?
Q: Since this product doesn't come with union fittings, what kit do I need to connect to 3/4 NPT?
Asked by Sam 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffThat valve has 3/4 NPT connections, so a 3/4 Male threaded pipe adapter.
Was this review helpful to you?
Q: What is its maximum flow rating?
Asked by art 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffsee page 2. https://customer.honeywell.com/resources/Techlit/TechLitDocuments/33-00000s/33-00063.pdf
Was this review helpful to you?
Q: The listing for this item says lead free but in the image the valve body is stamped "low lead". Is this device suitable for drinking water applications?
Asked by bob 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, this valve is lead free and can be used in potable water applications.
