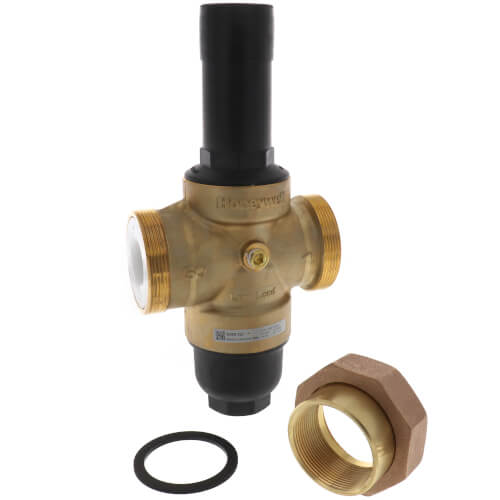

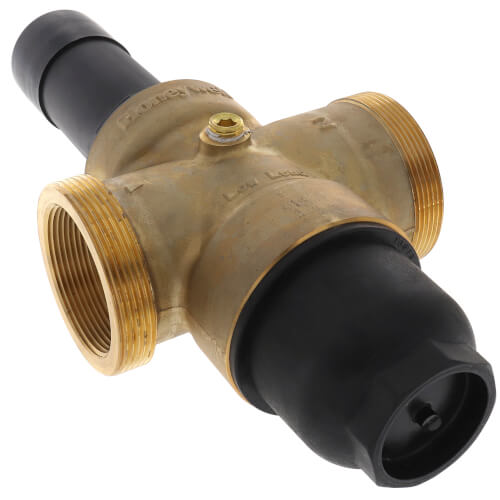

The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
- Built-In Dial-Set - no gauge is needed to install or set static pressure.
- Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable
- Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications.
- Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, single union or double-union configurations.
- 1/4" NPT tap accessible from both sides to validate output
- Built in strainer to simplify maintenance
- Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant
- Dimensions: 8 5/8" High x 6" Long
- Operating Temperature Range: 140 F Maximum
- Connection Type: Female NPT Threaded Inlet & Outlet Externally threaded for Unions
- Outlet Pressure Adjustment Range: 25-90 PSI
- Max. Inlet Pressure Rating: 250 PSI
- Gauge Tap: 1/4 in. NPT (two, one on each side of body).
- Reducing Ratio: 10:1 Maximum
- Union Fittings: Single-Union Threaded
- Approvals, ASSE: Certified 1003-2027
- Approvals, IAPMO: Listed
