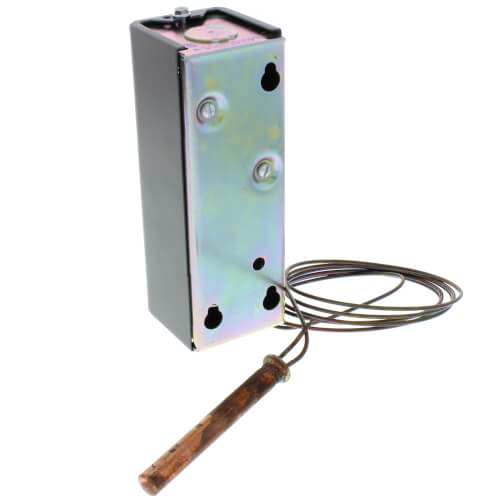

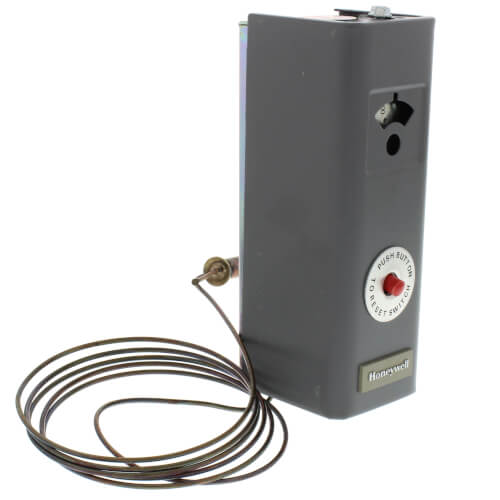

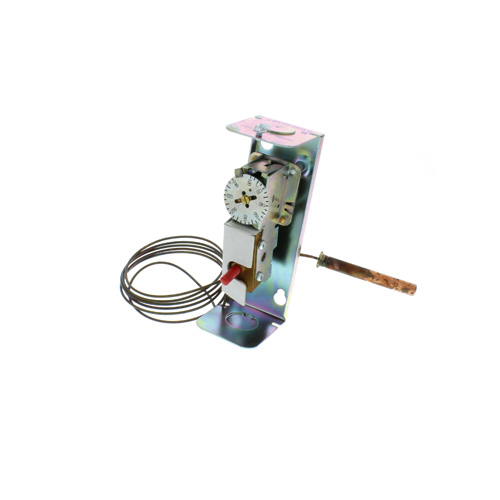

High Limit Remote Bulb Aquastat, 100-240-Degree (F) range, Manual Reset, L4008E1305
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$291.23 each
In Stock
Get 13 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5.1A @ 240 Vac, 0.25 A @ 0.25 to 12 Vdc, 8A @ 120 Vac
Manual Reset
SPST, Contacts Break on Temp Rise
Horizontal, Vertical
100°F to 240°F
5-5/8"
Description
–
Features
Product Specifications
- Remote temperature sensing element detects and responds rapidly to temperature changes.
- Totally enclosed Micro Switch+ snap-acting switch.

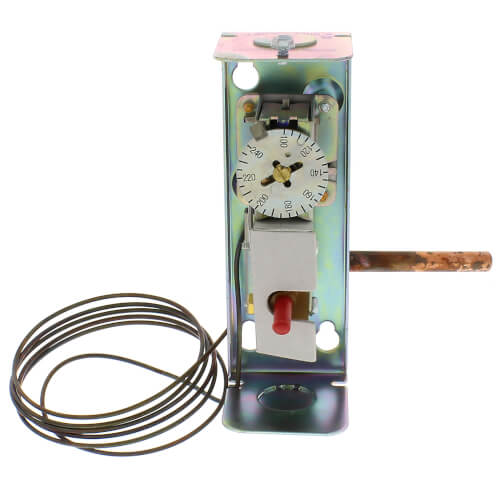

- Visible control point scale and external adjustment screw permit easy setting.
- Horizontal or vertical mounting of the remote element into boiler, tank, or other container.
- Case mounts to a vertical surface.
Product Specifications
- Description: High Limit; Manual Reset Aquastat Controller with 100 F to 240 F operating temperature and 66 in. capillary
- Application: High Limit; Manual Reset
- Bulb Size (in.) : 3/8 in. x 2 7/8 in. copper
- Bulb Size (mm) : 10 mm x 73 mm copper
- Capillary Length (in.): 66 in.
- Switching Action: SPST, contacts break on temperature rise.
- Operating Temperature Range (F): 100 F to 240 F
- Operating Temperature Range (C): 38 C to 116 C
- Electrical Ratings (millivolt): 0.25 A @ 0.25 to 12 Vdc
- Electrical Ratings (AFL): 8A @ 120 Vac
- Electrical Ratings (AFL): 5.1A @ 240 Vac
- Electrical Ratings (ALR): 48A @ 120 Vac
- Electrical Ratings (ALR): 30.6A @ 240 Vac
- Differential Temperature (F): Manual Reset
- Differential Temperature (C): Manual Reset
- Maximum Ambient Temperature (F): 150 F
- Maximum Ambient Temperature (C): 66 C
- Case Dimensions (in.): 5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
- Case Dimensions (mm): 143 mm high x 51 mm wide x 54 mm deep
- Mounting: Horizontal or Vertical
- Approvals, Underwriters Laboratories Inc UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
- Approvals, Canadian Standards Association Certified: File No. LR95329-1
Specs
–
| Application: | High Limit Manual Reset |
|---|---|
| Bulb Size: | 3/8" x 2-7/8" |
| Capillary Length: | 66" |
| Switch Action: | SPST Contacts Break on Temp Rise |
| Temperature Range (F): | 100°F to 240°F |
| Electrical Rating: | 5.1A @ 240 Vac 0.25 A @ 0.25 to 12 Vdc 8A @ 120 Vac |
| Electric Ratings (Ignition): | Transformer Load: 360 VA |
| Electrical Ratings (ALR): | 48A @ 120 Vac 30.6A @ 240 Vac |
| Max Ambient Temp (°F): | 150°F |
| Height: | 5-5/8" |
| Width: | 2" |
| Depth (Inches): | 2-1/8" |
| Well Included: | No |
| Mount: | Horizontal Vertical |
| Differential: | Manual Reset |
