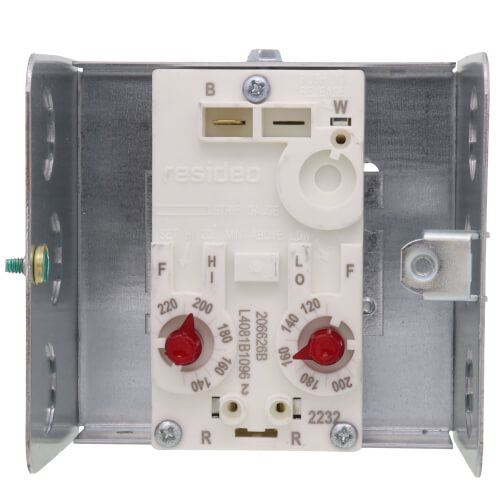

High Limit & Circulator Aquastat, 10-Degree (F) Differential, L4081B1096
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$323.79 each
In Stock
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5.1A @ 240 Vac, 0.25 A @ 0.25 to 12 Vdc, 8A @ 120 Vac
Fixed
SPST
Horizontal
110°F to 220°F, 130°F to 240°F
3-7/8"
Description
–
Features
Product Specifications

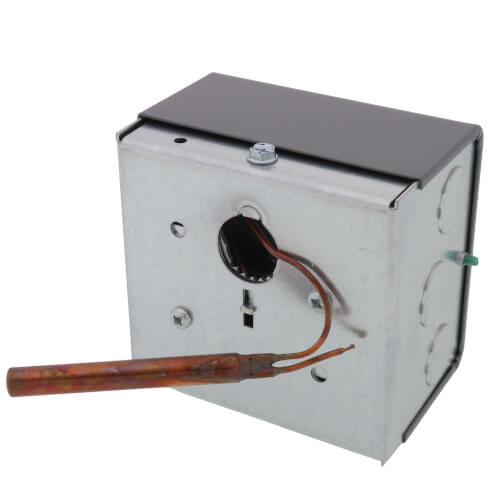

- An immersion type liquid-filled sensing element actuates two snap switches.
- One switch operates as a high limit control.
- The other switch operates as a low limit and/or circulator control, depending on the model.
- Controller may be mounted in any positioning and needs no leveling.
- Separate, easy-to-read, calibrated dial and setpoint adjustments for each switch.
- Differential adjustment on low limit or circulator switch.
- All adjustments accessible inside front cover.
- Push-in terminals for quick connecting.
- Single sensing element for easy installation.
- Two SPST snap switches act independently at respective temperature settings.
Product Specifications
- Description: High Limit and Circulator Aquastat Controller with 10 F fixed differential
- Application: High Limit and Circulator
- Operating Range, Low Limit (F): 110 F to 220 F
- Operating Range, Low Limit (C): 43 C to 104 C
- Operating Range, High Limit (F): 130 F to 240 F
- Operating Range, High Limit (C): 54 C to 116 C
- Differential Temperature (F) : 10 F fixed
- Switching Action: SPST: High Limit & Circulator
- Electrical Ratings (AFL): 8A @ 120 Vac
- Electrical Ratings (AFL): 5.1A @ 240 Vac
- Electrical Ratings (ALR): 48A @ 120 Vac
- Electrical Ratings (ALR): 30.6A @ 240 Vac
- Electrical Ratings: 0.25 A @ 0.25 to 12 Vdc
- Electrical Rating (ignition): Transformer Load: 360 VA
- Dimensions (in.): 3 7/8 in. high x 4 1/8 in. wide x 2 3/4 in. deep.
- Dimensions (mm): 98 mm high x 105 mm wide x 70 mm deep.
- Insulation Depth (in.): 3 in.
- Insulation Depth (mm) : 76 mm
- Mounting Horizontal
- Operating Humidity Range (% RH): 0 to 95% RH, non-condensing
- Maximum Ambient Temperature (F): 150 F at switches; 265 F at sensing element
- Maximum Ambient Temperature (C): 66 C at switches; 129 C at sensing element
- Approvals, Underwriters Laboratories Inc UL Listed: File No. MP466, Vol. 12, Sec. 4, Guide No. MBPR2
- Approvals, Canadian Standards Association Certified: File No. LR95329-1
Specs
–
| Application: | Circulator Control High Limit |
|---|---|
| Switch Action: | SPST |
| Temperature Range (F): | 110°F to 220°F 130°F to 240°F |
| Electrical Rating: | 5.1A @ 240 Vac 0.25 A @ 0.25 to 12 Vdc 8A @ 120 Vac |
| Electric Ratings (Ignition): | Transformer Load: 360 VA |
| Electrical Ratings (ALR): | 48A @ 120 Vac 30.6A @ 240 Vac |
| Differential: | Fixed |
| Max Ambient Temp (°F): | 150 F at Switches 265 F at Sensing Element |
| Height: | 3-7/8" |
| Depth (Inches): | 2-3/4" |
| Well Included: | No |
| Mount: | Horizontal |
| Operating Humidity: | 5% to 95% (non-condensing) |
