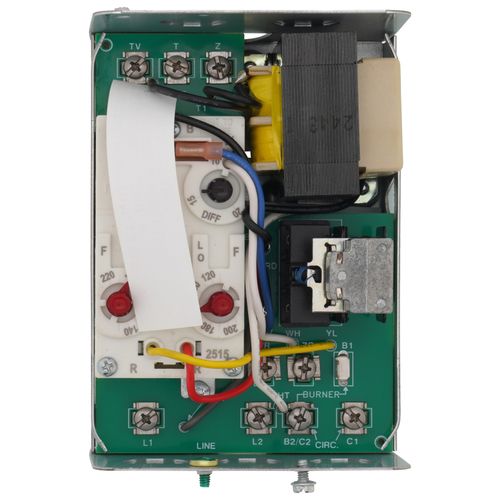

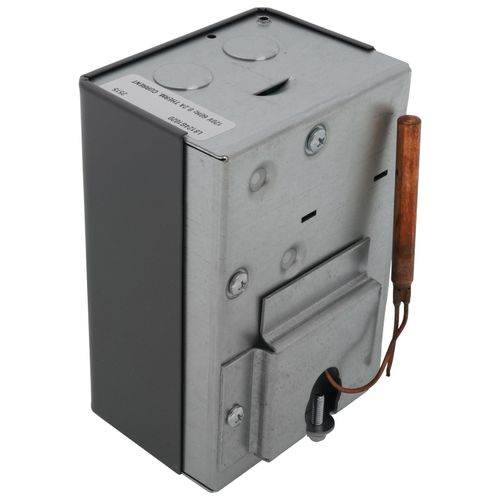

High Limit Triple Vertical Mount Aquastat Relay, High = 10-Degree(F) Diff, Low = 10-25-Degree(F) Adj Differential, L8124G1020
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$432.24 each
In Stock
Get 2 Tomorrow, Jul 7
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Circulator: 3.7 A @ 240 Vac, Circulator: 7.4 A @ 120 Vac, Burner: 3.7 A @ 240 Vac, Burner: 7.4 A @ 120 Vac
10° to 25°F (Low Limit), Adjustable, Fixed
SPST
Vertical
6-1/8"
3-1/16" Depth
Description
–
Features
Product Specifications
- Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems.
- Provide multizone control by using a separate circulator and R845 Relay for each zone.
- Include diaphragm powerhead and Micro Switch+ assembly that respond to temperature changes in boiler water.
- Mount directly to boiler.
- Select models include large transformers and extra terminals for supplying power to low voltage zone valves.
- Require 24 Vac thermostat with heat anticipator set at 0.2 A (plus current draw of gas valve on L8124E).
Product Specifications
- Description: Triple Aquastat Relay with High limit : 10 F fixed; low limit: 10-25 F adj. Differential
- Application: Triple Aquastat Relay with High limit
- Operating Range, Low Limit (F): 110 F to 220 F
- Operating Range, Low Limit (C): 43 C to 104 C
- Operating Range, High Limit (F): 130 F to 240 F
- Operating Range, High Limit (C): 54 C to 116 C
- Differential Temperature (F): High limit : 10 F fixed; low limit: 10-25 F adj.
- Switching Action: SPST: High & Low Limit
- Maximum Safe Operating Pressure (psi): 200 psi on outside of immersion well, 100 psi on capsule if inserted directly.
- Maximum Safe Operating Pressure (kPa): 1378 kPa on outside of immersion well, 690 kPa on capsule if inserted directly.
- Electrical Ratings (burner AFL): Line Voltage: 7.4 A @ 120 Vac; 3.7 A @ 240 Vac
- Electrical Ratings (burner ALR): Line Voltage: 44.4 A @ 120 Vac; 22.7 A @ 240 Vac
- Electrical Ratings (circulator AFL): 3.7 A @ 240 Vac
- Electrical Ratings (circulator AFL): 7.4 A @ 120 Vac
- Electrical Ratings (circulator ALR): 22.2 A @ 240 Vac
- Electrical Ratings (circulator ALR): 22.7 A @ 240 Vac
- Voltage: 120 Vac
- Frequency : 60 Hz
- Dimensions (in.): 6 1/8 in. high x 4 3/8 in. wide x 3 1/16 in. deep
- Dimensions (mm): 156 mm high x 111 mm wide x 78 mm deep
- Mounting : Vertical Mount Operating Humidity Range (% RH): 0 to 95% RH, non-condensing
- Maximum Ambient Temperature (F): 150 F at switches, 265 F at sensing element.
- Maximum Ambient Temperature (C): 66 C at switches, 129 C at sensing element.
- Minimum Ambient Temperature (F): -30 F
- Minimum Ambient Temperature (C): -9 C
- Electrical Connections: Quick-Connect / Screw
Specs
–
| Application: | Triple Aquastat Relay High Limit |
|---|---|
| Switch Action: | SPST |
| Electrical Rating: | Circulator: 3.7 A @ 240 Vac Circulator: 7.4 A @ 120 Vac Burner: 3.7 A @ 240 Vac Burner: 7.4 A @ 120 Vac |
| Electrical Ratings (ALR): | Burner: 22.2 A @ 240 Vac Burner: 44.4 A @ 120 Vac Circulator: 44.4 A @ 120 Vac Circulator: 22.2 A @ 240 Vac |
| Max Temp Differential: | 10°F 25°F |
| Min Temp Differential: | 10°F |
| Differential: | 10° to 25°F (Low Limit) Adjustable Fixed |
| Height: | 6-1/8" |
| Width: | 4-3/8" |
| Depth (Inches): | 3-1/16" |
| Operating Humidity: | 0% to 95% (non-condensing) |
| Max Ambient Temp (°F): | 150 F at Switches 265 F at Sensing Element |
| Min Ambient Temp (°F): | -30 F |
| Mount: | Vertical |
| Voltage: | 120v |
| Frequency: | 60 Hz |
| Max Pressure (PSI): | 200 (Immersion Well) 100 (Direct Immersion) |
| Connection Type: | Quick-Connect |
