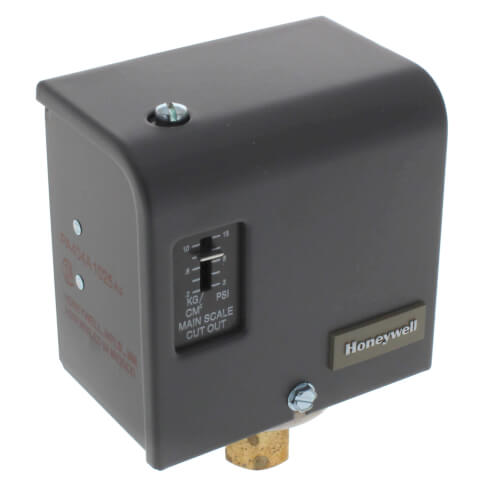

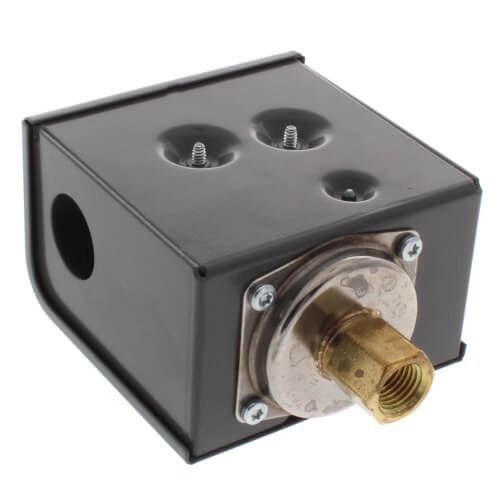

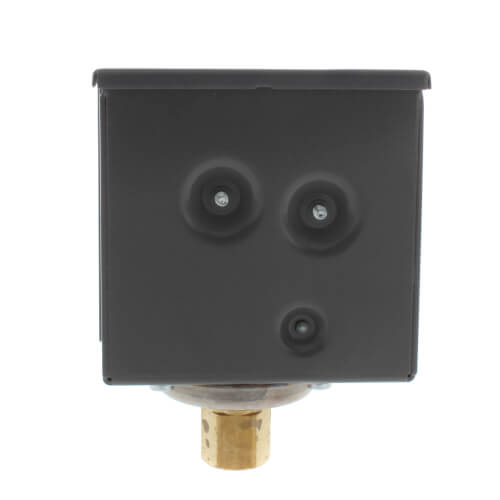

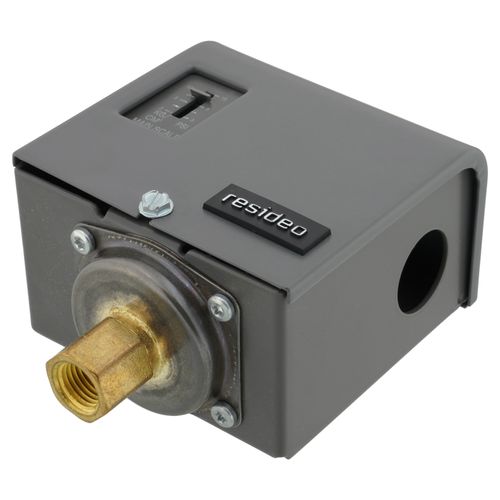

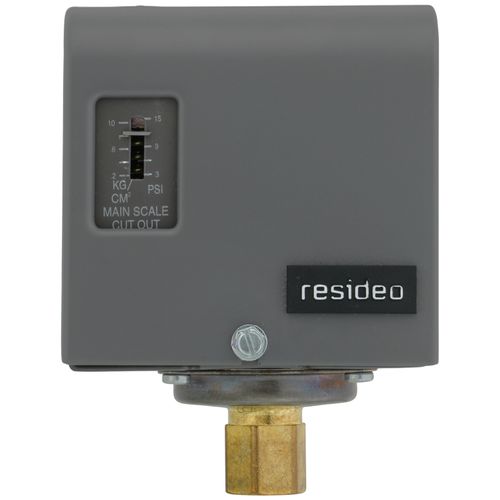

Pressuretrol Controller w/ Subtractive: 1 psi to 5 psi Differential Pressure
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$208.27 each
In Stock
Get 12 Fri, Mar 31
More Available
Order by 4PM, receive Friday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Makes at set point minus differential on pressure fall, Breaks at set point on pressure rise
50 PSI
3 PSI
150°F Max Temp
Description
–
Overview:
The PA404 is a series 40 (2-wire, SPST) pressuretrol controller for use in 24, 120, 240 or 277 volt control circuits or in self powered (millivoltage) applications. Features:
The PA404 is a series 40 (2-wire, SPST) pressuretrol controller for use in 24, 120, 240 or 277 volt control circuits or in self powered (millivoltage) applications. Features:
- 3-15 Psi Adjustable Pressure Range
- The PA404A is a pressure actuated high limit, safety control for steam heating boilers; it breaks an electrical circuit to shut down the burner if steam pressure rises above a safe level.
- The PA404B is used with suspension-type unit heaters to make the fan circuit when a pressure rise indicates the presence of steam.
- Each model contains an SPST MICRO SWITCH snap-acting switch.
- Sensitive pressure-actuated diaphragm expands or contracts with pressure variations, moving a lever mechanism which operates the snap switch.
- A screw on top of the case allows set point adjustment without removing the cover.
- Differential is adjusted by means of a dial located inside the case.
Specs
–
| Switch Action: | Makes at set point minus differential on pressure fall Breaks at set point on pressure rise |
|---|---|
| Pressure Range: | 3 to 15 psi |
| Max Pressure (PSI): | 50 |
| Min Pressure (PSI): | 3 |
| Pressure Differential: | 1 Psi to 5 Psi |
| Max Temp (F): | 150°F |
| Min Pressure Differential (PSI): | 1 |
| Max Pressure Differential (PSI): | 5 |
