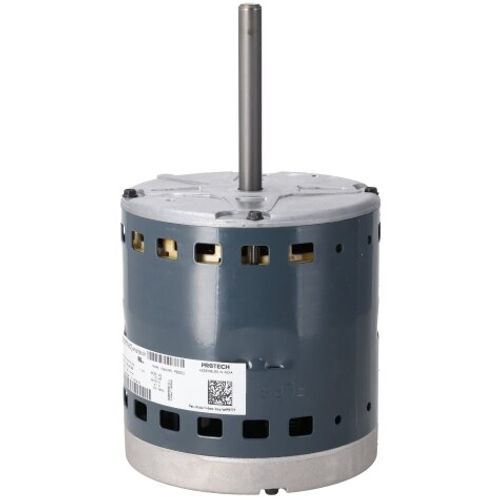

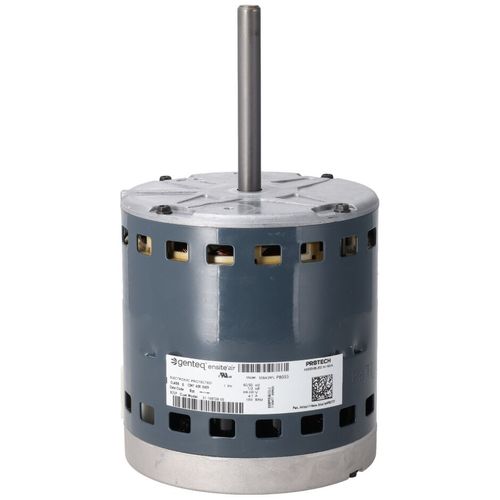

1/2 HP 208-230v Variable Speed Motor, 51-108728-103

The ProTech Ensite air motor series is specially designed for furnace applications. This innovative motor has best-in-class reliability and improved noise performance. The Ensite motor is the first of its kind with Near Field Communication (NFC), which allows for programming without physically connecting to the motor.

Features:

• ProTech OEM replacement motor
• Motor Power: 1/2 horsepower (hp) for 230V voltage applications
• Programmed motor
• For on-site programming, please use PD510011 ProTech programmer

Specifications:

• Application: Blower
• Bearing Type: Ball
• Blank Motor: 51-108728-00
• Blank Replacement Module: Not Available
• Drive Type: Direct Drive
• FLA at 208V (A): 4.10
• Frame Size: 48
• Frequency (Hz): 50 | 60
• High Speed (RPM): 1200
• HP: 1/2
• Input Voltage (V): 208 | 230
• Keyed/Flat Shaft Length (in.): 3-1/2
• Motor Body Diameter (in.): 5-9/16
• Motor Body Length (in.): 6
• Motor Type: Ensite Air
• Mounting: Shell-band
• No. of Phases: 1
• No. of Speeds: Variable
• Overall Motor Length (in.): 9-15/16
• Overall Shaft Length (in.): 3-15/16
• Programming Kit: PD510011
• Rotation Direction (OSE): Reversible
• Shaft Diameter (in.): 1/2
