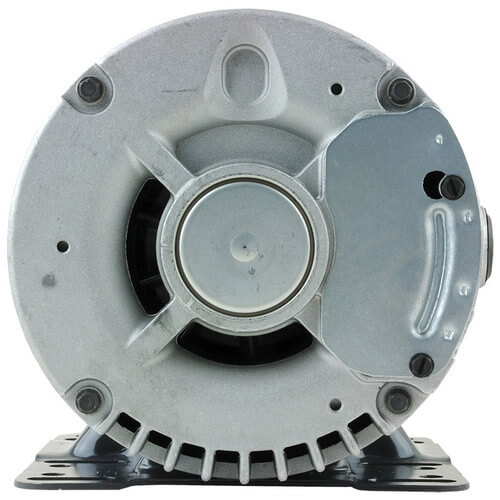

Main product image of 1 HP 1725RPM Motor (208-230/460V), 51-42368-02
Magnifying glass
Hover image to zoom

1 HP 1725RPM Motor (208-230/460V), 51-42368-02

Brand:
Rheem
SKU:
51-42368-02
Rating:
(0)
Q&A:
(0)
1 HP 1725RPM Motor (208-230/460V), 51-42368-02
Magnifying glass
Hover image to zoom
$578.44 each
In Stock
In Stock
Get 2 Wed, Jul 8
Will this part work with my unit?
Click to see if this part is compatible with your unit.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
208V, 230V, 460v
Product Highlight: RPM
1725 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1 HP

Description

–
1 HP 1725RPM Motor Specifications:
  • FLA at 230V (A): 2.8
  • LRA at 230V (A): 17.4
  • FLA at 460V (A): 1.4
  • LRA at 460V (A): 8.7
  • Shaft Diameter: 5/8"
  • Motor Body Diameter: 6-1/2"
  • Keyed/Flat Shaft Length: 1-3/4"
  • Overall Shaft Length: 2-1/4"
  • Motor Body Length: 10-1/16"
  • Overall Motor Length: 12-3/8"
  • Mounting: Platform
  • Frame Size: 56
  • Bearing Type: Ball
  • Application: Blower
  • Drive Type: Belt Drive

    • **Images may not represent actual product.**

    Specs

    –
    Voltage:

    208V

    230V

    460v

    Horse Power:

    1

    Rotation:

    Reversible

    Phase:

    3

    RPM:

    1725

    Frequency:

    60 Hz

    Speeds:

    1
