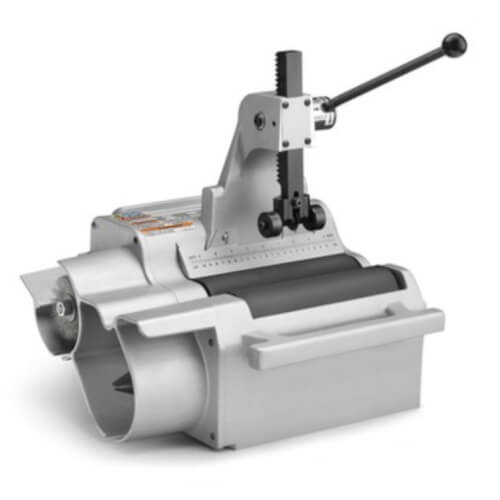

Model 122XL Copper Cutting/Prep Machine 1/2"-4"

This machine is designed to cut, clean, ream and deburr copper and stainless steel tubing and fittings quickly and professionally. Weighing only 72 lbs (32.7 kg) and possessing a conveniently located carrying handle, the Model 122XL is ideal for transport directly to the job site. Rugged cast aluminum housing and powerful 1/3 HP induction motor assures a long life.

Product Features:

• Tube and fitting capacity: 1/2" - 4" (12 mm - 108 mm).
• Powerful 1/3 HP induction motor drives rollers at 300 RPM.
• Rugged O.D. cleaning brush cleans tubing quickly with minimal effort.
• Core reamer easily removes turbulence-causing burrs.
• Cutting handle adjusts to accommodate different tubing sizes.
• Large carrying handle for easy transport to the job site.
• Guide rollers ensure a straight cut with no tracking.
• Built-in 1/2" - incremental scale for quick, easy measuring.
• Cutter wheel tested to over 10,000 cuts.
• Fitting brush kit includes six brushes, storage rack and collet.
• Approved to UL standards (NRTLC) (115V only).
• CSA approved (115V only).

Product Specifications

• Copper and stainless steel tube and fitting capacity: 1/2" - 4" (12 mm-108 mm)
• For ASTM B88 types K, L, M copper
• For stainless steel wall thickness up to .065" (1.65 mm)
• Switch: Toggle on/off
• Cutter Wheel: Model 122 SS
• Reamer: Single flute cone, RH, 1/2" to 2"
• Motor: 1/3 HP, 115V, 60Hz induction motor or 1/3 HP, 230V induction motor
