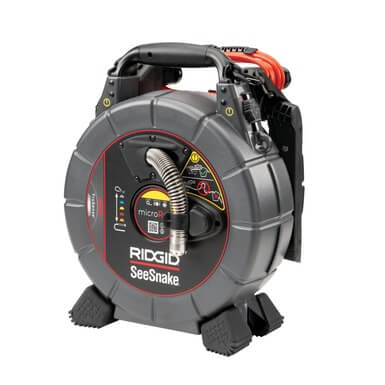

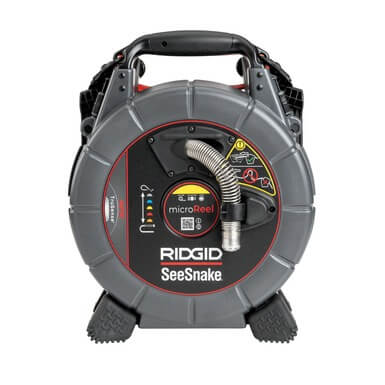

100' SeeSnake microReel APX w/ TruSense Diagnostic Inspection Camera

The RIDGID SeeSnake microReel APX with TruSense is a lightweight, compact and portable diagnostic inspection camera. It offers enhanced camera functionality including TruSense technology and auto-image rotation for bright, clear in-pipe images and on-screen camera angle and image orientation feedback. The microReel APX includes a kickstand for use with the CSx Via, and offers enhanced stability and usability when positioned at a 45 angle.

Product Features

• Enhanced Camera - APX with TruSense technology offers an HDR image sensor for superior in-pipe viewing & TiltSense
• Visibility- Enhanced high-efficiency LEDs deliver better in pipe visibility and higher color accuracy
• Auto-image flip - Ensures the bottom of pipe remains on the bottom of the monitor
• Durability - Hardened stainless steel camera head for long service life
• Portability - Lightweight and compact carrying case design
• Versatility - Kickstand offers improved stability and usage with CSX Via
• Traceability - Integrated 512 Hz sonde allows for easy line tracing and locating
• Easy navigation - Mid-flex push cable ideal for small diameter (1-1/2" to 5") and tight-turn radius inspections us to 100' (30m)

Product Specifications

• Weight: 12.7 lbs (5.8 kg)
• Length: 13.3 in (337 mm)
• Width: 8.8 in (224 mm)
• Height: 16.2 in (411 mm)
• Drum Diameter: 12 in (305 mm)
• Camera Diameter: 25 mm
• Type: Fixed
• Resolution: 640 x 480
• Line Capacity: 1 1/2" to 4" (40 mm to 101 mm)
• Push Cable Length: 100 ft (30 m)
• Push Cable Diameter: 0.27 in (6.7 mm)
• Push Cable Minimum Bend Radius: 2.5 in (64 mm)
• Sonde: 512 Hz, Integrated
