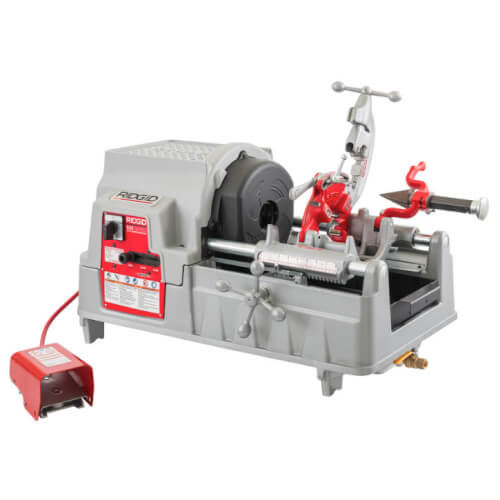

Model 535A, Automatic Threading Machine

The Model 535A maintains the ruggedness of the industry workhorse while adding features that make the threading operation more productive. A large chip tray and oil reservoir make the 535A ideal for longer uninterrupted threading. The 535 features a high clearance carriage that makes the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy. The 535A is designed around maximum uptime with the upgrades that matter most to the pipe working professional.

Product Features:

• Automatic Chuck
• 3-Speed (16/46/58 RPM) Transmission
• Large 1.75 Gallon Oil Reservoir
• 100% Greater Chip Tray Capacity
• Generous Top Cover Area For Keeping Tools and Fittings Handy
• High Clearance Carriage
• Can Be Used with Geared Threader Model 141
• Uses Model 816/817 Semi Automatic, Model 815A Self Opening or Model 811A Quick Opening Die Heads (sold separately)
• CSA Approved
• Approved to UL Standards (NRTLC)

Product Specifications

• Pipe Capacity: 1/8" - 2" (3 - 50 mm); 2-1/2" - 4" (62 - 100 mm) with 141 geared threader
• Bolt Capacity: 1/4" - 2" (8 - 50 mm)
• Motor: 2 HP, single-phase, 115V, 60 Hz, 20 Amp, Reversible Induction motor
• Switches: Forward/off/reverse and integral safety foot switch
• Chuck: Automatic with four reversible forged jaws
• Rear Centering Device: Automatic, centering only
• Reamer: 5-flute cone, RH, 1/8" - 2" (3 - 50 mm)
• Oil Pump: Self-priming gerotor oil pump
