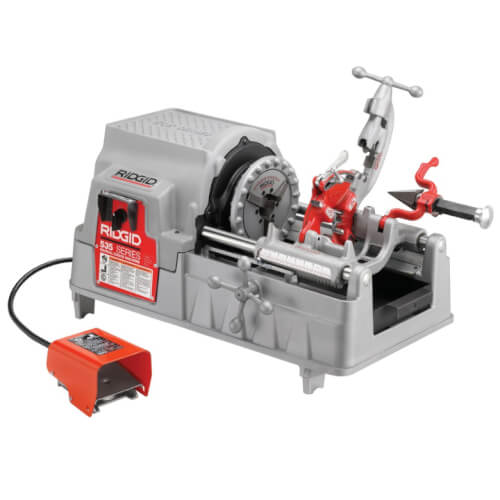

Model 535 Threading Machine, 1/4" to 2" Bolt Capacity, 36 RPM (115V)

The Model 535 maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive. A large chip tray and oil reservoir makes the 535 ideal for longer uninterrupted threading. The 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional.

Product Features:

• Large 1.75 gallon (6.6 L) oil tray
• Large chip tray
• Generous top cover for keeping tools and fittings handy
• High clearance carriage makes threading easier
• Speed chuck with rocker-action jaws centers and grips work piece instantly
• Can be used with geared Models 141 and 161 threaders
• Uses Model 816/817 semiautomatic, Model 815A self-opening or Model 811A quick-opening die heads
• Length gauge for quick, accurate cut-off

Product Specifications

• Pipe Capacity: 1/8" - 2" (3 - 50 mm); 2-1/2" - 4" (62 - 100 mm), 4" - 6" (100mm-150mm) with 141 and 161 geared threaders
• Bolt Capacity: 1/4" - 2" (8 - 50 mm)
• Switches: Forward/off/reverse and integral safety foot switch
• Chuck: Speed Chuck with three replaceable rocker-action jaw inserts
• Rear Centering Device: Cam-action, turns with chuck
• Reamer: 5-flute cone, RH, 1/8" - 2" (3 - 50 mm)
• Oil Pump: Self-priming gerotor oil pump
• Motor Type: Universal
