1H/1C Programmable Thermostat

Overview:

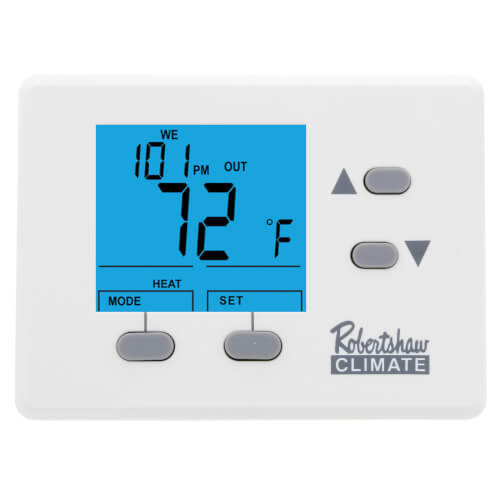

The Robertshaw Climate RS1100 HEAT or COOL thermostat is an impressive new low cost thermostat. With a beautiful vibrant blue backlight, the RS1000 series is Simply The Right Choice for an economical programmable heat/cool thermostat for new and replacement residential applications. The thermostat can be configured for Fahrenheit or Celsius, and can be used as manual or 5-1-1 day programmable operation.

Features:

• Heating or Cooling Control
• Selectable Fahrenheit or Celsius Display
• 5-1-1 Day Programmable & Manual (non-programmable) Operation
• 4 Events / Day
• Temporary Override with Override Icon on Display
• Fan Selector for Automatic or Continuous Fan Operation
• Adjustable Temperature Differential
• Compressor Short Cycle Protection - Reduces wear and tear on HVAC equipment compressor
• Worry Free Memory Retention - Maintains programmed parameters even during power outages
• HVAC equipment control using dry contact relays
• Quick Wire Terminal Block - Uses sturdy wire clamps

Specifications:

• Thermostat Family: RS1000 Series
• Type: Electronic
• HVAC Equipment: Gas, Electric, Oil, Heat Pump
• Control: Heat, Fan, Cool, Off
• Humidity: No
• Programmability: Non-Programmable/5-1-1 Day
• Events/Day: 4
• Voltage Type: Low
• Voltage: 24V, Battery Required
• Battery: Yes
• Remote Sensors: No
• Color: White
• Orientation: Horizontal
• Product Weight : 10 oz.
• Electrical Contact Rating : 24V AC (18-30V AC) 1 amp maximum load per terminal
• Accuracy : +- 1°F (+- 0.5°C)
• Power : 2 AAA alkaline batteries included
• System Configurations : Gas, electric, oil, heat pump and millivolt systems
• Terminations : R, G, Y, O/B or W
