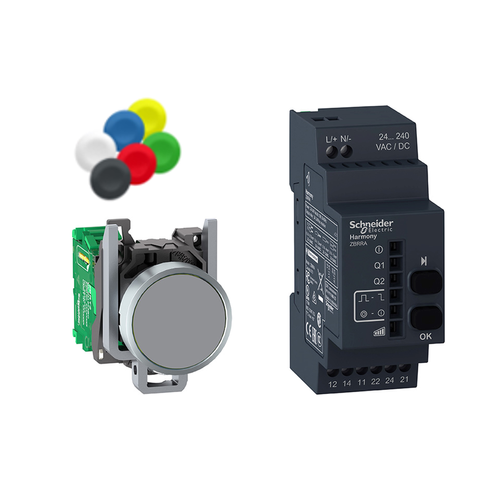

Harmony Wireless Push Button & Config. Receiver + 10 Colored Caps, Metal (24-240 VAC/DC)

This Harmony XB4 flush wireless and batteryless push button and receiver unit set is supplied with a set of 10 colored caps and uses a 24V to 240V AC input. It has a metal bezel. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes. The button is easily installed into standard 22mm diameter panel cut-outs, while the receiver is DIN rail mountable.

• Communication Port Protocol: Zigbee IEEE 802.15.4
• Product Certifications: GOST || CCC || CSA || UL || C-tick
• Standards: IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508
• Kit Composition: 1 22 mm || 1 push-button head 22 mm || 1 receiver || 1 set of caps || 1 fixing collars || 1 transmitter
• Bandwidth: 5-5 MHz
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Rohs Exemption Information: Yes
• Customizable: no
• Mercury Free: Yes
• Product Or Component Type: wireless and batteryless package
• Type Of Receiver: programmable receiver 2 relays)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• [Us] Rated Supply Voltage: 24...240 V AC/DC 50/60 Hz
• Number Of Channels: 1
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Transmission Frequency: 2405 MHz transmitter || 2405 MHz receiver
• Control Type: wireless and batteryless push-button 22 mm assembled on fixing collar
• Level Or Class: 5M00G7W
• Warranty: 18 months
• Radio Agreement: ANATEL || FCC || RSS || ARIB T66 || ICASA || SRRC
• Antenna Gain: 0 dBi
• Head Material: metal
• Status Led: 1 LED Green power ON || 2 LEDs Green relay ON || 2 LEDs Green function mode || 1 LED green and yellow reception signal
• China Rohs Regulation: X
• Antenna Type: omnidirectional
• Modulation Technique: O-QPSK
• Range Of Product: Harmony XB4R
• [Us] Rated Supply Voltage: 24...240 V
• Device Short Name: XB4R
• Circularity Profile: N/A
• Max Power Consumption In W: 1 mW
• Compatibility Code: XB4R
• Marking: CE
