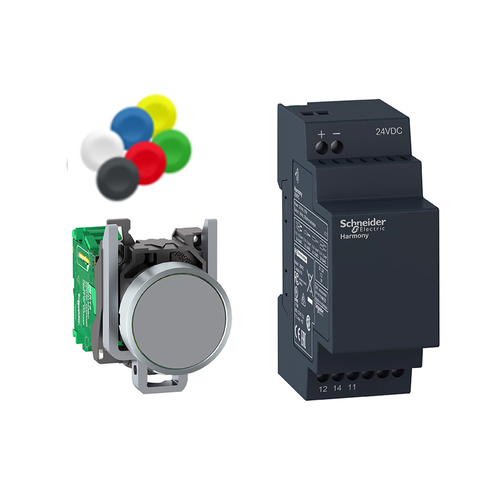

Harmony Wireless Push Button & Non-Configurable Receiver + 1 Black Cap, w/o Battery, Metal (24 VDC)

This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB4R metal. This pack comprises one wireless and batteryless metallic pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. This technology also allows an operator to be mobile or have a control mounted on-board of a vehicle (trolley, truck, etc.). The pushbutton is always available and requires no maintenance (no battery needed).

• [Us] Rated Supply Voltage: 24 V DC
• Antenna Gain: 0 dBi
• Max Power Consumption In W: 1 mW
• [Us] Rated Supply Voltage: 24 V
• Number Of Channels: 1
• Marking: CE
• Bandwidth: 5-5 MHz
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Control Type: wireless and batteryless push-button 22 mm assembled on fixing collar
• Product Certifications: CCC || C-tick || GOST || CSA || UL
• Compatibility Code: XB4R
• Standards: UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1
• Type Of Receiver: non-programmable receiver 1 relay)
• Head Material: metal
• Communication Port Protocol: Zigbee IEEE 802.15.4
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Range Of Product: Harmony XB4R
• Level Or Class: 5M00G7W
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Antenna Type: omnidirectional
• Warranty: 18 months
• Rohs Exemption Information: Yes
• Modulation Technique: O-QPSK
• Mercury Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Transmission Frequency: 2405 MHz transmitter || 2405 MHz receiver
• Radio Agreement: ARIB T66 || RSS || ICASA || SRRC || FCC || ANATEL
• Device Short Name: XB4R
• Circularity Profile: N/A
• Product Or Component Type: wireless and batteryless package
• China Rohs Regulation: X
• Customizable: no
• Kit Composition: 1 22 mm || 1 fixing collars || 1 push-button head 22 mm || 1 transmitter || 1 receiver || 1 set of caps
