Harmony Wireless Push Button & Config. Receiver + 10 Colored Caps, w/o Battery, Plastic (24 VDC)

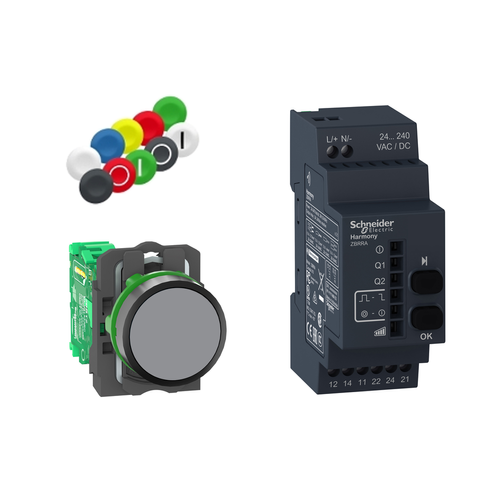

This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB5R plastic. This pack comprises one wireless and batteryless pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The pushbutton is always available and requires no maintenance (no battery needed). It is supplied with a set of 10 colored caps. It weighs 230g. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes.

• Radio Agreement: SRRC || RSS || ARIB T66 || FCC || ICASA || ANATEL
• Customizable: no
• Product Certifications: UL || CCC || GOST || CSA || C-tick
• Standards: CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || IEC 60947-1
• [Us] Rated Supply Voltage: 24...240 V AC/DC 50/60 Hz
• Max Power Consumption In W: 1 mW
• Number Of Channels: 1
• Modulation Technique: O-QPSK
• Status Led: 1 LED Green power ON || 2 LEDs Green relay ON || 2 LEDs Green function mode || 1 LED green and yellow reception signal
• Rohs Exemption Information: Yes
• Antenna Gain: 0 dBi
• Device Short Name: XB5R
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Product Or Component Type: wireless and batteryless package
• Transmission Frequency: 2405 MHz transmitter || 2405 MHz receiver
• Circularity Profile: ENVEOLI1103010EN
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP101106EN
• Range Of Product: Harmony XB5R
• Antenna Type: omnidirectional
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Kit Composition: 1 transmitter || 1 set of caps || 1 receiver || 1 fixing collars || 1 22 mm || 1 push-button head 22 mm
• Head Material: plastic
• Level Or Class: 5M00G7W
• Compatibility Code: XB5R
• Warranty: 18 months
• Type Of Receiver: programmable receiver 2 relays)
• Control Type: wireless and batteryless push-button 22 mm assembled on fixing collar
• Communication Port Protocol: Zigbee IEEE 802.15.4
• China Rohs Regulation: X
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Bandwidth: 5-5 MHz
• Marking: CE
