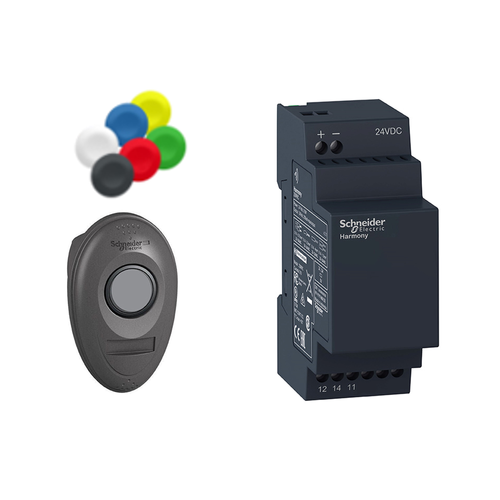

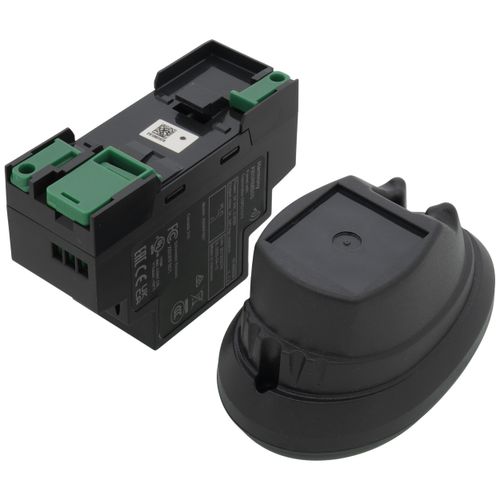

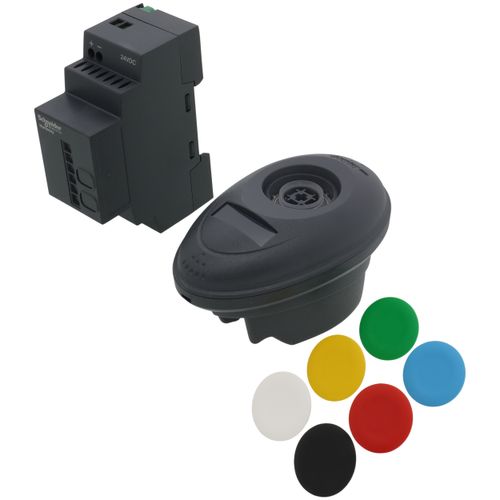

Harmony Wireless Push Button & Non-Config. Receiver + 10 Colored Caps, Plastic (24 VDC)

This Harmony XB5, flush black wireless push button and receiver unitset is supplied with 24V DC input and is mounted in a plastic handybox. This wireless batteryless push button with handybox is ideal for standalone remote control of conveyor and unaccessible machines. It is delivered pre-mounted in a handy box which saves the need for assembly in a cabinet. The receiver is also DIN rail mountable. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is easily installed into standard 22mm diameter cut-outs. It complies with most radio emission standards, for a guaranteed comfort during design and project approval.

• Sustainable Offer Status: Green Premium product
• Bandwidth: 5-5 MHz
• Standards: CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Head Material: plastic
• Marking: CE
• Type Of Receiver: non-programmable receiver 1 relay)
• [Us] Rated Supply Voltage: 24 V DC
• Range Of Product: Harmony XB5R
• Environmental Disclosure: ENVPEP101106EN
• Communication Port Protocol: Zigbee IEEE 802.15.4
• Control Type: wireless and batteryless push-button handy box assembled on fixing collar
• Rohs Exemption Information: Yes
• Product Or Component Type: wireless and batteryless package
• Antenna Gain: 0 dBi
• Antenna Type: omnidirectional
• Product Certifications: UL || GOST || CCC || C-tick || CSA
• Radio Agreement: RSS || SRRC || ICASA || FCC || ANATEL || ARIB T66
• [Us] Rated Supply Voltage: 24 V
• Customizable: no
• Device Short Name: XB5R
• Kit Composition: 1 22 mm || 1 transmitter || 1 set of caps || 1 receiver || 1 fixing collars || 1 push-button head 22 mm || 1 handy box
• Transmission Frequency: 2405 MHz transmitter || 2405 MHz receiver
• Circularity Profile: ENVEOLI1103010EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• China Rohs Regulation: X
• Warranty: 18 months
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Level Or Class: 5M00G7W
• Modulation Technique: O-QPSK
• Mercury Free: Yes
• Number Of Channels: 1
• Max Power Consumption In W: 1 mW
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Compatibility Code: XB5R
