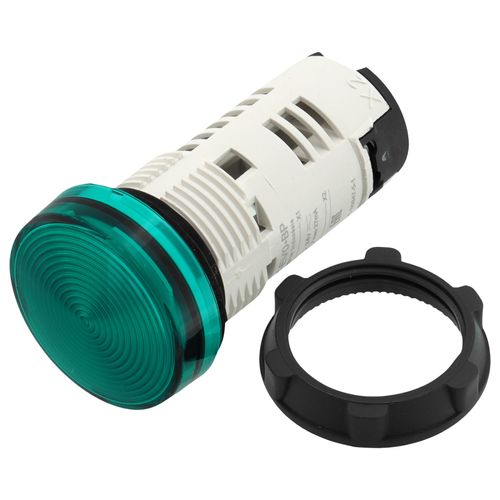

Harmony XB7 Monolithic Pilot Light w/ Integral LED - Green (24 VAC/DC)

This Harmony XB7, plain lens monolithic green pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

• Overvoltage Category: class II IEC 60536
• Sustainable Offer Status: Green Premium product
• Device Mounting: fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
• [Uimp] Rated Impulse Withstand Voltage: 6 kV IEC 60947-1
• Sale Per Indivisible Quantity: 10
• [Ui] Rated Insulation Voltage: 250 V 3)IEC 60947-1
• Supply Voltage Limits: 19.2-30 V DC || 21.6-26.4 V AC
• Toxic Heavy Metal Free: Yes
• [Us] Rated Supply Voltage: 24 V AC/DC 50/60 Hz
• Standards: UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-1
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• China Rohs Regulation: X
• Ambient Air Temperature For Operation: -25-70 °C
• Net Weight: 0.02 kg
• Shape Of Signaling Unit Head: round
• Circularity Profile: ENVEOLI1805012EN
• Bulb Base: integral LED
• Light Source: LED
• Fixing Mode: fixing nut beneath head 2-2.4 N.m
• Mercury Free: Yes
• Range Of Product: Harmony XB7
• Cap/Operator Or Lens Colour: green
• Device Presentation: monolithic product
• Device Short Name: XB7
• Environmental Disclosure: ENVPEP1805012EN
• Width: 29 mm
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Fixing Center: >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
• Tightening Torque: 0.8-1.2 N.m IEC 60947-1
• Shock Resistance: 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Height: 29 mm
• Current Consumption: 20...27 mA
• Warranty: 18 months
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Ip Degree Of Protection: IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
• Signalling Type: steady
• Signalling Type: steady
• Protective Treatment: TH
• Reach Free Of Svhc: Yes
• Rohs Exemption Information: Yes
• Terminals Description Iso N°1: (X1-X2)PL
• Service Life: 70000 h at rated voltage and 25 °C
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• Depth: 54 mm
• Nema Degree Of Protection: NEMA 4 UL 50 E || NEMA 12 UL 50 E
• Connections - Terminals: screw clamp terminals, <= 2 x 1.5 mm squared with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm squared without cable end IEC 60947-1
• Product Or Component Type: pilot light
• Mounting Diameter: 22 mm
• Shape Of Screw Head: cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat 4 mm || slotted flat 5.5 mm
• Ambient Air Temperature For Storage: -40-70 °C
