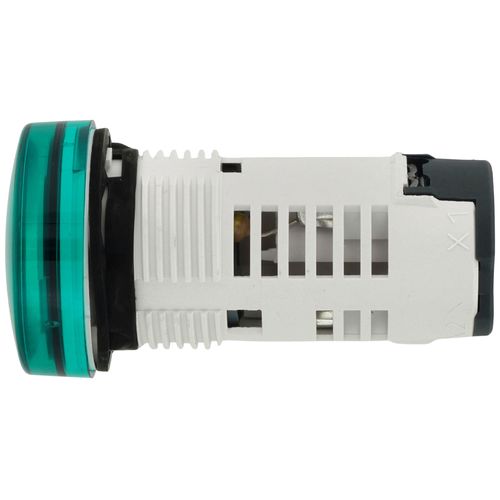

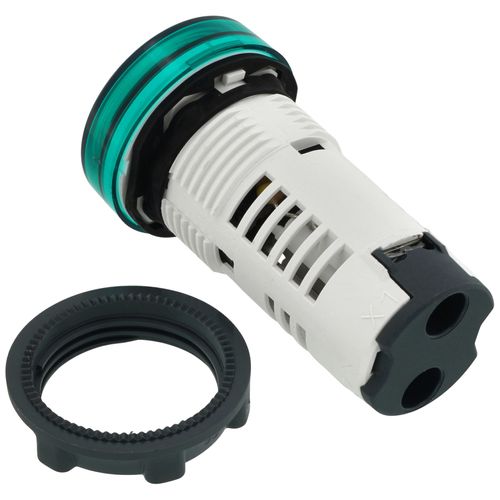

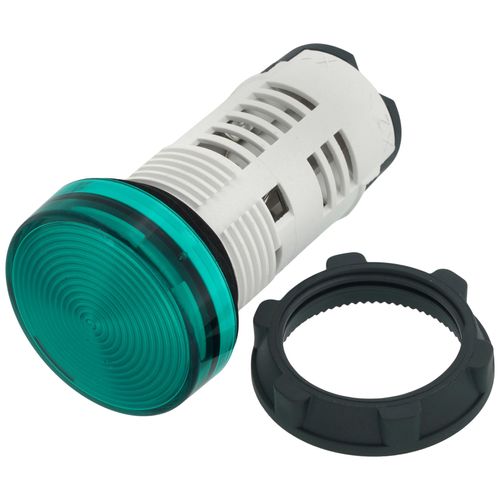

Harmony XB7 Monolithic Pilot Light w/ Integral LED - Green (110-120 VAC)

This Harmony XB7, plain lens monolithic green pilot light is supplied with 120V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

• Device Mounting: fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
• Tightening Torque: 0.8-1.2 N.m IEC 60947-1
• Reach Free Of Svhc: Yes
• Bulb Base: integral LED
• Product Or Component Type: pilot light
• Mounting Diameter: 22 mm
• Protective Treatment: TH
• Shape Of Signaling Unit Head: round
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• [Uimp] Rated Impulse Withstand Voltage: 6 kV IEC 60947-1
• [Ui] Rated Insulation Voltage: 250 V 3)IEC 60947-1
• Device Short Name: XB7
• Warranty: 18 months
• Electromagnetic Compatibility: disturbing field emission class B conforming to IEC 55011
• Overvoltage Category: class II IEC 60536
• China Rohs Regulation: X
• Toxic Heavy Metal Free: Yes
• Width: 29 mm
• Cap/Operator Or Lens Colour: green
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Mercury Free: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Fixing Mode: fixing nut beneath head 2-2.4 N.m
• Connections - Terminals: screw clamp terminals, <= 2 x 1.5 mm squared with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm squared without cable end IEC 60947-1
• Circularity Profile: ENVEOLI1805012EN
• Shape Of Screw Head: cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat 4 mm || slotted flat 5.5 mm
• Fixing Center: >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
• Sale Per Indivisible Quantity: 10
• Service Life: 70000 h at rated voltage and 25 °C
• Supply Voltage Limits: 100-132 V AC
• Ambient Air Temperature For Storage: -40-70 °C
• Net Weight: 0.02 kg
• Nema Degree Of Protection: NEMA 4 UL 50 E || NEMA 12 UL 50 E
• Ip Degree Of Protection: IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
• Light Source: LED
• Light Source: LED
• Device Presentation: monolithic product
• Standards: UL 508 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
• Signalling Type: steady
• [Us] Rated Supply Voltage: 120 V AC 50/60 Hz
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Height: 29 mm
• Shock Resistance: 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Environmental Disclosure: ENVPEP1805012EN
• Range Of Product: Harmony XB7
• Current Consumption: 18...21 mA
• Ambient Air Temperature For Operation: -25-70 °C
• Depth: 54 mm
• Rohs Exemption Information: Yes
