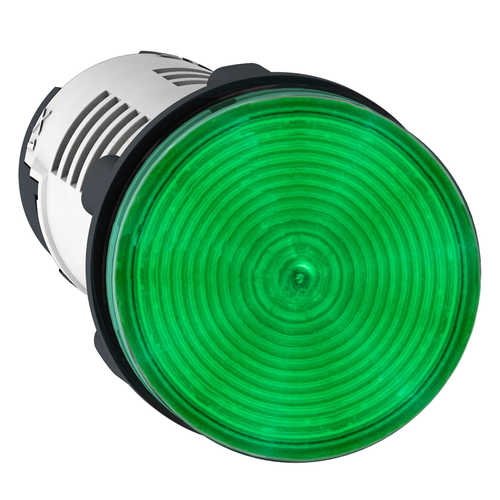

Harmony XB7 Monolithic Pilot Light w/ Integral LED & Faston Connectors - Green (230-240 VAC)

This Harmony XB7, plain lens monolithic green pilot light is supplied with 230V AC, uses an integral LED and Faston terminals. It is easily installed into a standard 22mm diameter cut-outs and connected with simple Faston connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

• China Rohs Regulation: X
• Shape Of Signaling Unit Head: round
• Supply Voltage Limits: 195-264 V AC
• Circularity Profile: ENVEOLI1805012EN
• Environmental Disclosure: ENVPEP1805012EN
• Nema Degree Of Protection: NEMA 4 UL 50 E || NEMA 12 UL 50 E
• Current Consumption: 16...20 mA
• Signalling Type: steady
• Warranty: 18 months
• Shock Resistance: 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Protective Treatment: TH
• Ambient Air Temperature For Storage: -40-70 °C
• [Us] Rated Supply Voltage: 230...240 V AC 50/60 Hz
• Toxic Heavy Metal Free: Yes
• Range Of Product: Harmony XB7
• Fixing Mode: fixing nut beneath head 2-2.4 N.m
• Fixing Center: >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
• Product Or Component Type: pilot light
• Operator Additional Information: with plain lens
• Mercury Free: Yes
• Width: 29 mm
• Device Presentation: monolithic product
• [Ui] Rated Insulation Voltage: 250 V 3)EN/IEC 60947-1
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Light Source: LED
• Net Weight: 0.02 kg
• Overvoltage Category: class II IEC 60536
• Device Mounting: fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-5-1
• Bulb Base: integral LED
• Cap/Operator Or Lens Colour: green
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Sustainable Offer Status: Green Premium product
• [Uimp] Rated Impulse Withstand Voltage: 6 kV EN/IEC 60947-1
• Ip Degree Of Protection: IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
• Service Life: 70000 h at rated voltage and 25 °C
• Connections - Terminals: Faston connectors 1 x 6.35 mm EN/IEC 60947-1 || Faston connectors 2 x 2.8 mm EN/IEC 60947-1
• Reach Free Of Svhc: Yes
• Reach Free Of Svhc: Yes
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• Depth: 54 mm
• Ambient Air Temperature For Operation: -25-70 °C
• Electromagnetic Compatibility: disturbing field emission class B conforming to EN 55011
• Rohs Exemption Information: Yes
• Standards: JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
• Sale Per Indivisible Quantity: 10
• Device Short Name: XB7
• Mounting Diameter: 22 mm
• Terminals Description Iso N°1: (X1-X2)PL
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Height: 29 mm
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
