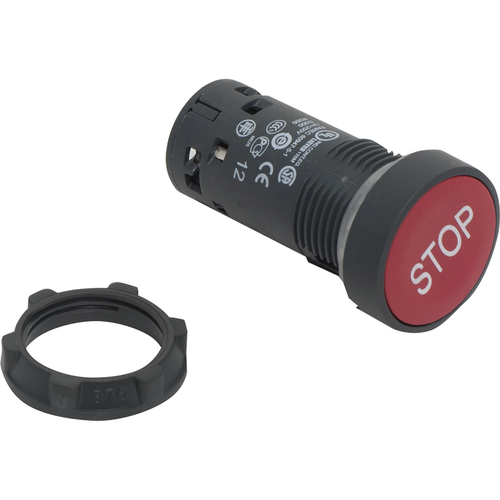

Harmony XB7 Monolithic Push Button, White Marked STOP, Spring Return, 1 NC - Red

This Harmony XB7, monolithic red push button marked with a "STOP" lettering operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

• Net Weight: 0.021 kg
• [Ie] Rated Operational Current: 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
• Tightening Torque: 0.8-1.2 N.m IEC 60947-1
• Product Or Component Type: push-button
• Type Of Operator: spring return
• Ip Degree Of Protection: IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
• Sustainable Offer Status: Green Premium product
• Fixing Center: >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
• Fixing Mode: fixing nut beneath head 2-2.4 N.m
• Cad Overall Depth: 51.5 mm
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• [Uimp] Rated Impulse Withstand Voltage: 4 kV IEC 60947-1
• Protective Treatment: TH
• Terminals Description Iso N°1: (11-12)NC
• China Rohs Regulation: X
• Contacts Type And Composition: 1 NC
• [Ui] Rated Insulation Voltage: 250 V 3)IEC 60947-1
• Device Presentation: monolithic product
• Circularity Profile: ENVEOLI1805012EN
• Mounting Diameter: 22 mm
• Sale Per Indivisible Quantity: 10
• Electrical Reliability: <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4
• Shape Of Screw Head: cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat 4 mm || slotted flat 5.5 mm
• Contact Operation: slow-break
• Toxic Heavy Metal Free: Yes
• Product Certifications: CCC || GOST
• Overvoltage Category: class II IEC 61140
• Electrical Durability: 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
• Shock Resistance: 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• Warranty: 18 months
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• Ambient Air Temperature For Storage: -40-70 °C
• Cad Overall Height: 29 mm
• Rohs Exemption Information: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Cad Overall Width: 29 mm
• California Proposition 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• California Proposition 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Short-Circuit Protection: 4 A cartridge fuse gG IEC 60947-5-1
• Mercury Free: Yes
• Ambient Air Temperature For Operation: -25-70 °C
• Environmental Disclosure: ENVPEP1805012EN
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Device Short Name: XB7
• Shape Of Signaling Unit Head: round
• Mechanical Durability: 1000000 cycles
• Range Of Product: Harmony XB7
• Connections - Terminals: screw clamp terminals, <= 2 x 1.5 mm squared with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm squared without cable end IEC 60947-1
• Nema Degree Of Protection: NEMA 12 UL 50 E || NEMA 3 UL 50 E
• Positive Opening: with NC contact IEC 60947-5-1 appendix K
• Standards: IEC 60947-1 || IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
