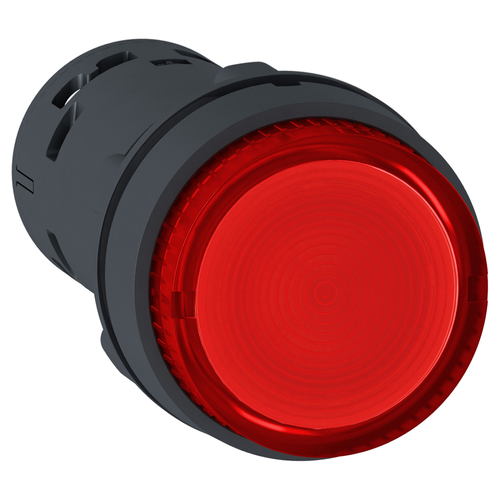

Harmony XB7 Monolithic Illuminated Push Button w/ Integral LED, Push to Release, 1 NO - Red (24 VAC)

This Harmony XB7, illuminated monolithic red push button operates with a latched push to release mechanism, is supplied with 24V AC/DC and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illuminated head, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

• Mercury Free: Yes
• Light Source: LED
• Protective Treatment: TH
• Electrical Durability: 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
• Device Mounting: fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
• Service Life: 70000 h at rated voltage and 25 °C
• Shape Of Screw Head: cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat 4 mm || slotted flat 5.5 mm
• Tightening Torque: 0.8-1.2 N.m IEC 60947-1
• Electrical Shock Protection Class: class II IEC 61140
• Sustainable Offer Status: Green Premium product
• Rohs Exemption Information: Yes
• Device Presentation: monolithic product
• Product Certifications: GOST || CCC
• Shock Resistance: 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration
• Net Weight: 0.023 kg
• Cad Overall Depth: 57.5 mm
• Environmental Disclosure: ENVPEP1805012EN
• Ip Degree Of Protection: IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
• Supply Voltage Limits: 19.2-30 V DC || 21.6-26.4 V AC
• [Uimp] Rated Impulse Withstand Voltage: 4 kV IEC 60947-1
• Warranty: 18 months
• Contacts Type And Composition: 1 NO
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Bulb Base: integral LED
• Nema Degree Of Protection: NEMA 12 UL 50 E
• Operator Additional Information: with plain lens
• Cad Overall Height: 29 mm
• [Ui] Rated Insulation Voltage: 250 V 3)IEC 60947-1
• Signalling Type: steady
• Type Of Operator: push and push-to-release
• Short-Circuit Protection: 4 A cartridge fuse gG IEC 60947-5-1
• Contact Operation: slow-break
• Cad Overall Width: 29 mm
• Current Consumption: 18...27 mA
• Electrical Reliability: <= 10exp(-6) 17 V 5 mA IEC 60947-5-4
• Fixing Center: >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• China Rohs Regulation: X
• Device Short Name: XB7
• Positive Opening: with (only NO)
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Operator Profile: red projecting, unmarked
• Terminals Description Iso N°1: (13-14)NO
• Range Of Product: Harmony XB7
• Mechanical Durability: 300000 cycles
• Circularity Profile: ENVEOLI1805012EN
• Product Or Component Type: illuminated push-button
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ambient Air Temperature For Storage: -40-70 °C
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
