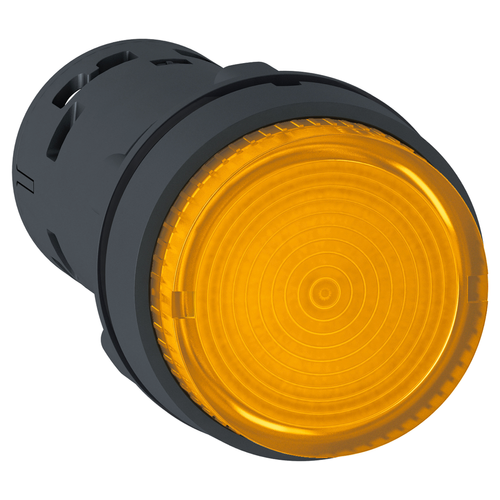

Harmony XB7 Monolithic Illuminated Push Button w/ Integral LED, Spring Return, 1 NO - Orange (24 VAC/DC)

This Harmony XB7, illuminated projecting monolithic orange push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Environmental Disclosure: ENVPEP1805012EN
• Operator Profile: orange projecting, unmarked
• Electrical Shock Protection Class: class II IEC 61140
• Protective Treatment: TH
• Fixing Center: >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
• Rohs Exemption Information: Yes
• Net Weight: 0.023 kg
• Nema Degree Of Protection: NEMA 12 UL 50 E
• Electrical Reliability: <= 10exp(-6) 17 V 5 mA IEC 60947-5-4
• Device Presentation: monolithic product
• Short-Circuit Protection: 4 A cartridge fuse gG IEC 60947-5-1
• Sale Per Indivisible Quantity: 10
• Current Consumption: 18...27 mA
• [Ui] Rated Insulation Voltage: 250 V 3)IEC 60947-1
• Product Or Component Type: illuminated push-button
• China Rohs Regulation: X
• Contact Operation: slow-break
• Ambient Air Temperature For Operation: -25-70 °C
• Cad Overall Height: 29 mm
• Signalling Type: steady
• Mounting Diameter: 22 mm
• Tightening Torque: 0.8-1.2 N.m IEC 60947-1
• Shock Resistance: 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration
• Mechanical Durability: 300000 cycles
• Electromagnetic Emission: class B IEC 55011
• Contacts Type And Composition: 1 NO
• Sustainable Offer Status: Green Premium product
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Cad Overall Width: 29 mm
• Shape Of Screw Head: cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat 4 mm || slotted flat 5.5 mm
• [Ie] Rated Operational Current: 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Type Of Operator: spring return
• Light Source: LED
• Service Life: 70000 h at rated voltage and 25 °C
• Fixing Mode: fixing nut beneath head 2-2.4 N.m
• Fixing Mode: fixing nut beneath head 2-2.4 N.m
• Supply Voltage Limits: 19.2-30 V DC || 21.6-26.4 V AC
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• Circularity Profile: ENVEOLI1805012EN
• Device Short Name: XB7
• Product Certifications: GOST || CCC
• Device Mounting: fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
• Ip Degree Of Protection: IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
• Warranty: 18 months
• Ambient Air Temperature For Storage: -40-70 °C
• Cad Overall Depth: 57.5 mm
• Connections - Terminals: screw clamp terminals, <= 2 x 1.5 mm squared with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm squared without cable end IEC 60947-1
• [Us] Rated Supply Voltage: 24 V AC/DC
• Electrical Durability: 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
