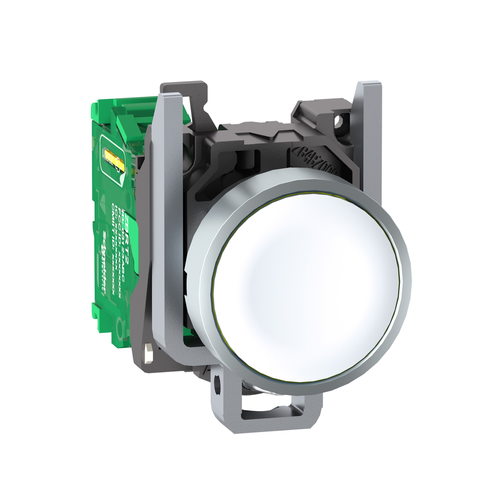

Harmony XB5R Wireless Push Button with Transmitter, Spring Return, w/o Battery, Metal - White
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$112.65 each
Out of Stock
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
White
18 Months Warranty
Description
–
- Mounting Diameter: 22 mm
- Product Certifications: CSA || UL || BT 2006/95/EC || GOST || C-tick
- Mechanical Durability: 1000000 cycles
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- Net Weight: 0.045 kg
- Mercury Free: Yes
- Product Or Component Type: wireless and batteryless transmitter
- Shock Resistance: 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Antenna Gain: 0 dBi
- Cad Overall Depth: 43 mm
- Mechanical Robustness: free fall resistance 1000 mm IEC 60068-2-32
- Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
- Operating Travel: 4.3 mm total travel)
- Operating Force: 10 N C/O changing electrical state
- Environmental Disclosure: ENVPEP101106EN
- Bandwidth: 5-5 MHz
- Cad Overall Width: 30 mm
- Cad Overall Height: 41.5 mm
- Level Or Class: 5M00G7W
- Electromagnetic Compatibility: electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
- Bezel Material: chromium plated metal
- Ambient Air Temperature For Storage: -40-70 °C
- Fixing Collar Material: zamak
- Max Power Consumption In W: 1 mW
- Electrical Composition Code: PW1
- Sustainable Offer Status: Green Premium product
- Fixing Mode: fixing screw beneath head 0.8-1.2 N.m
- Circularity Profile: ENVEOLI1103010EN
- Ip Degree Of Protection: IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)
- China Rohs Regulation: X
- Modulation Technique: O-QPSK
- Standards: CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || UL 508
- Rohs Exemption Information: Yes
- Number Of Channels: 16
- Emission Power: 3 mW
- Maximum Sensing Distance: 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
- Relative Humidity: 95-95 % -40-70 °C without condensation
- Relative Humidity: 95-95 % -40-70 °C without condensation
- Protective Treatment: TH
- Ambient Air Temperature For Operation: -40-70 °C
- Transmission Frequency: 2405 MHz
- Type Of Operator: spring return push-button with transmitter
- Acquisition Time: 2 ms
- Vibration Resistance: 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
- Ik Degree Of Protection: IK03 IEC 50102
- Embedding Depth: 42 mm
- Response Time: < 2 ms
- Warranty: 18 months
- Communication Port Protocol: Zigbee green power 2.4 GHz IEEE 802.15.4
- Antenna Type: omnidirectional
- Range Of Product: Harmony XB5
