Harmony XB5R Wireless Push Button with Transmitter, Spring Return, w/o Battery, Plastic - Green

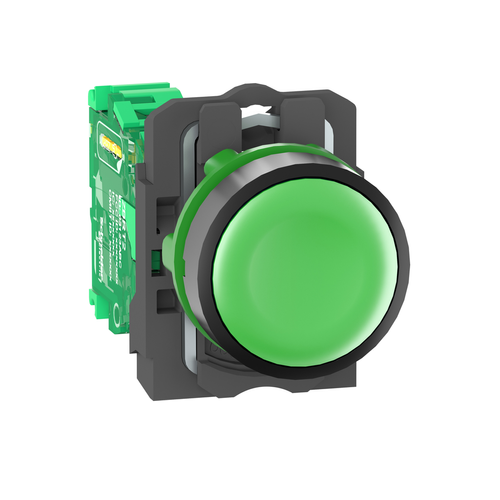

This complete transmitter is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a transmitter fitted with a fixing collar and a spring return flush push button head with green clipped-in cap.

• Product Or Component Type: wireless and batteryless transmitter
• Circularity Profile: ENVEOLI1103010EN
• Embedding Depth: 42 mm
• Transmission Frequency: 2405 MHz
• Electrical Composition Code: PW1
• Antenna Gain: 0 dBi
• Ik Degree Of Protection: IK03 IEC 50102
• Response Time: < 2 ms
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Shock Resistance: 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Operator Profile: green flush
• Standards: CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508
• Acquisition Time: 2 ms
• Net Weight: 0.045 kg
• Cad Overall Depth: 43 mm
• Shape Of Signaling Unit Head: round
• Vibration Resistance: 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Max Power Consumption In W: 1 mW
• Device Short Name: XB5R
• Directives: 1999/5/EC - R&TTE directive || 2004/108/EC - electromagnetic compatibility
• Ambient Air Temperature For Storage: -40-70 °C
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free: Yes
• Cad Overall Height: 41.5 mm
• Modulation Technique: O-QPSK
• Fixing Mode: fixing nut beneath head 2-2.4 N.m
• Warranty: 18 months
• China Rohs Regulation: X
• Radio Agreement: ANATEL || ARIB T66 || FCC || ICASA || RSS
• Mounting Diameter: 22 mm
• Number Of Channels: 16
• Type Of Operator: spring return push-button with transmitter
• Mechanical Durability: 1000000 cycles
• Electromagnetic Compatibility: electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
• Ambient Air Temperature For Operation: -40-70 °C
• Product Certifications: BT 2006/95/EC || UL || GOST || C-tick || CSA
• Product Certifications: BT 2006/95/EC || UL || GOST || C-tick || CSA
• Sustainable Offer Status: Green Premium product
• Cad Overall Width: 30 mm
• Relative Humidity: 95-95 % -40-70 °C without condensation
• Bezel Material: dark grey plastic
• Level Or Class: 5M00G7W
• Rohs Exemption Information: Yes
• Mechanical Robustness: free fall resistance 1000 mm EN/IEC 60068-2-32
• Emission Power: 3 mW
• Bandwidth: 5-5 MHz
• Fixing Collar Material: plastic
• Communication Port Protocol: Zigbee green power 2.4 GHz IEEE 802.15.4
• Station Name: XALD 1...5 cut-outs || XALK 2...5 cut-outs
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
