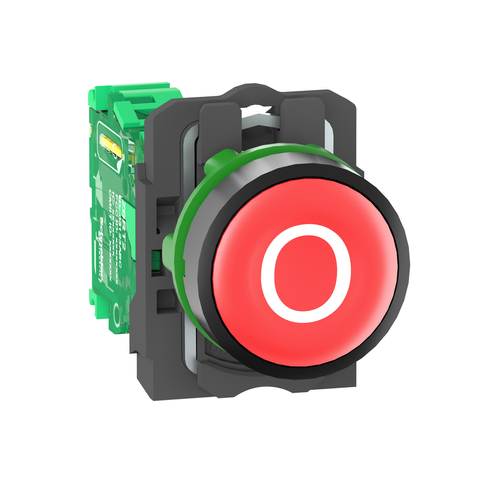

Harmony XB5R Wireless Push Button, Marked O, Spring Return, w/o Battery, Plastic, Red

This button head provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP30, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly High performance International standards & certifications ( Marine certification, IP65, IP30, Type 4X)

• China Rohs Regulation: X
• Operating Force: 10 N C/O changing electrical state
• Modulation Technique: O-QPSK
• Sustainable Offer Status: Green Premium product
• Response Time: < 2 ms
• Environmental Disclosure: ENVPEP101106EN
• Level Or Class: 5M00G7W
• Cad Overall Depth: 43 mm
• Electrical Composition Code: PW1
• Operating Travel: 4.3 mm total travel)
• Ik Degree Of Protection: IK03 IEC 50102
• Radio Agreement: ANATEL || ARIB T66 || FCC || ICASA || RSS
• Emission Power: 3 mW
• Ambient Air Temperature For Operation: -40-70 °C
• Circularity Profile: ENVEOLI1103010EN
• Station Name: XALD 1...5 cut-outs || XALK 2...5 cut-outs
• Electromagnetic Compatibility: electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
• Ambient Air Temperature For Storage: -40-70 °C
• Number Of Channels: 16
• Bezel Material: dark grey plastic
• Cad Overall Width: 30 mm
• Net Weight: 0.045 kg
• Mounting Diameter: 22 mm
• Product Or Component Type: wireless and batteryless transmitter
• Relative Humidity: 95-95 % -40-70 °C without condensation
• Type Of Operator: spring return push-button with transmitter
• Rohs Exemption Information: Yes
• Shock Resistance: 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Fixing Mode: fixing nut beneath head 2-2.4 N.m
• Operator Profile: red flush, O white)
• Mercury Free: Yes
• Fixing Collar Material: plastic
• Product Certifications: C-tick || UL || CSA || GOST || BT 2006/95/EC
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Range Of Product: Harmony XB5
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Embedding Depth: 42 mm
• Embedding Depth: 42 mm
• Bandwidth: 5-5 MHz
• Cad Overall Height: 41.5 mm
• Device Short Name: XB5R
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Antenna Type: omnidirectional
• Acquisition Time: 2 ms
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Maximum Sensing Distance: 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
• Communication Port Protocol: Zigbee green power 2.4 GHz IEEE 802.15.4
• Standards: CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508
• Antenna Gain: 0 dBi
• Ip Degree Of Protection: IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)
• Max Power Consumption In W: 1 mW
