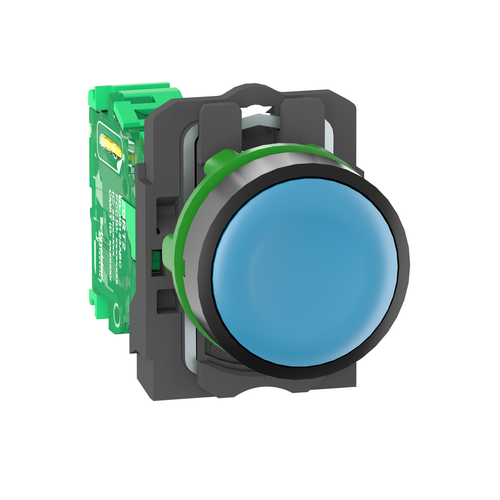

Harmony XB5R Wireless Push Button with Transmitter, Spring Return, w/o Battery, Plastic - Blue

This button head provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP30, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly High performance International standards & certifications ( Marine certification, IP65, IP30, Type 4X)

• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Fixing Collar Material: plastic
• Ambient Air Temperature For Storage: -40-70 °C
• Product Or Component Type: wireless and batteryless transmitter
• Modulation Technique: O-QPSK
• Sustainable Offer Status: Green Premium product
• Mechanical Durability: 1000000 cycles
• Shape Of Signaling Unit Head: round
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Cad Overall Height: 41.5 mm
• Ip Degree Of Protection: IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)
• Standards: CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508
• Fixing Mode: fixing nut beneath head 2-2.4 N.m
• Response Time: < 2 ms
• Communication Port Protocol: Zigbee green power 2.4 GHz IEEE 802.15.4
• Net Weight: 0.045 kg
• Cad Overall Depth: 43 mm
• Embedding Depth: 42 mm
• Antenna Gain: 0 dBi
• Antenna Type: omnidirectional
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Product Certifications: C-tick || CSA || GOST || BT 2006/95/EC || UL
• Mounting Diameter: 22 mm
• Device Short Name: XB5R
• Operator Profile: blue flush
• Range Of Product: Harmony XB5
• Radio Agreement: ANATEL || ARIB T66 || FCC || ICASA || RSS
• Environmental Disclosure: ENVPEP101106EN
• Electromagnetic Compatibility: electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
• Ambient Air Temperature For Operation: -40-70 °C
• Acquisition Time: 2 ms
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Station Name: XALD 1...5 cut-outs || XALK 2...5 cut-outs
• Emission Power: 3 mW
• China Rohs Regulation: X
• Warranty: 18 months
• Number Of Channels: 16
• Number Of Channels: 16
• Ik Degree Of Protection: IK03 IEC 50102
• Bandwidth: 5-5 MHz
• Transmission Frequency: 2405 MHz
• Cad Overall Width: 30 mm
• Directives: 2004/108/EC - electromagnetic compatibility || 1999/5/EC - R&TTE directive
• Bezel Material: dark grey plastic
• Rohs Exemption Information: Yes
• Level Or Class: 5M00G7W
• Vibration Resistance: 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
• Circularity Profile: ENVEOLI1103010EN
• Relative Humidity: 95-95 % -40-70 °C without condensation
• Electrical Composition Code: PW1
• Max Power Consumption In W: 1 mW
