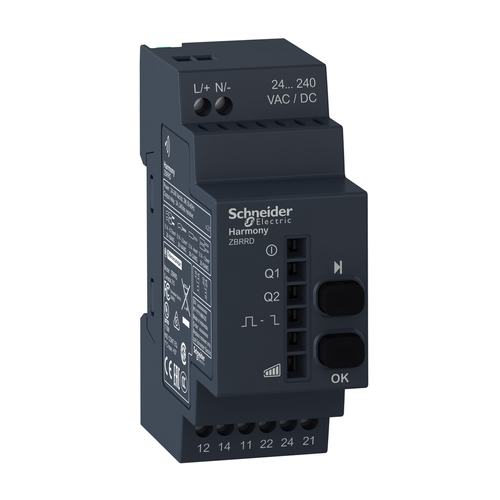

Programmable Receiver, 2 Relays, 2 Push Buttons, 6 Indicating LEDs (24-240 VAC/DC)

This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. Its supply voltage is 24V to 240V AC/DC.

• Relative Humidity: 90-90 % -20-55 °C, without condensation ETSI EN 300 440-1
• Maximum Switching Voltage: 250 V AC/DC
• Input Output Isolation: galvanic isolation
• Maximum Sensing Distance: 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
• Antenna Gain: 0 dBi
• Standards: CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || IEC 60947-1
• Radio Agreement: RSS || SRRC || ANATEL || ARIB T66 || FCC || ICASA
• Rated Short-Duration Power Frequency Withstand Voltage: 1.5 kV 50 Hz IEC 60947-5-1
• Height: 108 mm
• Status Led: 1 LED Green power ON || 2 LEDs Green relay ON || 2 LEDs Green function mode || 1 LED green and yellow reception signal
• Response Time: < 30 ms after transmitter clicks
• Insulation Resistance: > 500 MOhm 500 V DC NF C 20-030
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Operating Position: any position without derating
• Number Of Channels: 1
• China Rohs Regulation: X
• Breaking Capacity: 15 W
• Circularity Profile: ENVEOLI1103010EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Nominal Output Current: 0.3 A 48 V DC IEC 60947-5-1 || 3 A 24 V DC UL 508 || 1.5 A 240 V AC IEC 60947-5-1 || 3 A 120 V AC IEC 60947-5-1 || 3 A 240 V AC UL 508 || 3 A 24 V DC CSA C22.2 No 14 || 3 A 240 V AC CSA C22.2 No 14
• Vibration Resistance: +/- 7.5 mm 5-14 Hz)IEC 60068-2-6 || 2 gn 8-150 Hz)IEC 60068-2-6
• [Uimp] Rated Impulse Withstand Voltage: 4 kV
• Modulation Technique: O-QPSK
• Communication Port Protocol: Zigbee green power 2.4 GHz IEEE 802.15.4
• Marking: CE
• Function Of Module: bi-stable || monostable
• Breaking Capacity: 750 VA
• Transmission Frequency: 2405 MHz
• Level Or Class: 5M00G7W
• Warranty: 18 months
• Output Type: 2 relays
• Bandwidth: 5-5 MHz
• Output Contacts: 2 C/O
• Switching Capacity In Va: 1250 VA
• Mechanical Durability: 1000000 cycles
• Tightening Torque: 0.5-1 N.m IEC 60947-1
• Electrical Connection: 1 conductor cable 0.14-2.5 mm squared - AWG 26...AWG 14 - solid - without cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm squared - AWG 26...AWG 16 - solid - without cable end IEC 60947-1 || 1 conductor cable 0.14-4 mm squared - AWG 26...AWG 12 - flexible - with cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm squared - AWG 26...AWG 16 - flexible - with cable end IEC 60947-1
• Electrical Connection: 1 conductor cable 0.14-2.5 mm squared - AWG 26...AWG 14 - solid - without cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm squared - AWG 26...AWG 16 - solid - without cable end IEC 60947-1 || 1 conductor cable 0.14-4 mm squared - AWG 26...AWG 12 - flexible - with cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm squared - AWG 26...AWG 16 - flexible - with cable end IEC 60947-1
• Electrical Durability: 100000 cycles
• Rohs Exemption Information: Yes
• Control Circuit Frequency: 50...60 Hz +/- 10 %
• Mounting Support: 35 mm symmetrical DIN rail conforming to IEC 60715 || mounting plate
• Reset Time: 2 ms time delay
• Sustainable Offer Status: Green Premium product
• [Ui] Rated Insulation Voltage: 250 V IEC 60664-1
• Short-Circuit Protection: 0.4 A fuse fast blow
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Utilisation Category: AC-15 : B300 IEC 60947-5-1 || DC-12 IEC 60947-5-1
• Housing Material: self-extinguishing plastic
• Surge Withstand: 1 kV differential mode IEC 61000-4-5 || 2 kV common mode IEC 61000-4-5
• Time Delay Range: 0.5 s - 15...15 %)
