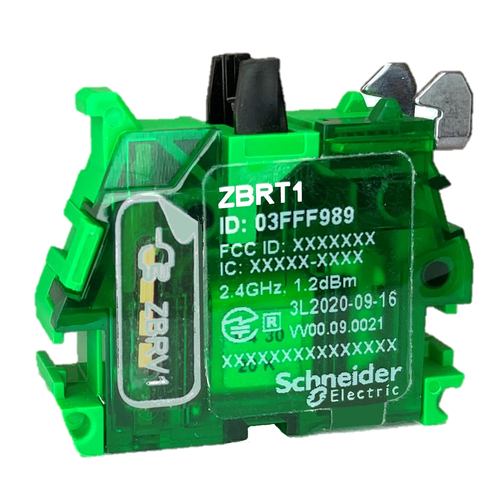

Transmitter for Wireless & Batteryless Push Button - Black

This transmitter is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a transmitter for wireless and batteryless pushbutton. It provides 1 radio frame sent at the push of the button. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 25g.

• Modulation Technique: O-QPSK
• Product Or Component Type: wireless and batteryless transmitter
• Ip Degree Of Protection: IP30 IEC 60529 back face)
• Radio Agreement: ANATEL || ARIB T66 || FCC || ICASA || RSS
• Cad Overall Width: 30 mm
• Range Of Product: Harmony XB5
• Vibration Resistance: 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
• Ambient Air Temperature For Storage: -40-70 °C
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Antenna Type: omnidirectional
• Electrical Composition Code: PW1
• Shock Resistance: 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Communication Port Protocol: Zigbee green power 2.4 GHz IEEE 802.15.4
• Acquisition Time: 2 ms
• Response Time: < 2 ms
• Cad Overall Height: 41.5 mm
• Cad Overall Depth: 43 mm
• Level Or Class: 5M00G7W
• Transmission Frequency: 2405 MHz
• Net Weight: 0.025 kg
• Sustainable Offer Status: Green Premium product
• Relative Humidity: 95-95 % -40-70 °C without condensation
• Environmental Disclosure: ENVPEP2009013EN
• Antenna Gain: 0 dBi
• Mechanical Robustness: free fall resistance 1000 mm IEC 60068-2-32
• Mounting Diameter: 22 mm
• Standards: CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || UL 508
• Operating Force: 10 N C/O changing electrical state
• Device Short Name: XB5R
• Silicon Free: Yes
• Operating Travel: 4.3 mm total travel)
• Bezel Material: plastic
• Embedding Depth: 42 mm
• Max Power Consumption In W: 1 mW
• China Rohs Regulation: X
• Maximum Sensing Distance: 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
• Number Of Channels: 16
• Number Of Channels: 16
• Fixing Mode: fixing nut beneath head 2-2.4 N.m
• Mechanical Durability: 1000000 cycles
• Circularity Profile: ENVEOLI2009013EN
• Warranty: 18 months
• Pvc Free: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Directives: 1999/5/EC - R&TTE directive || 2004/108/EC - electromagnetic compatibility
• Bandwidth: 5-5 MHz
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Ambient Air Temperature For Operation: -40-70 °C
• Product Certifications: CSA || GOST || CCC || C-tick || UL || BT 2006/95/EC
• Ik Degree Of Protection: IK03 IEC 50102
