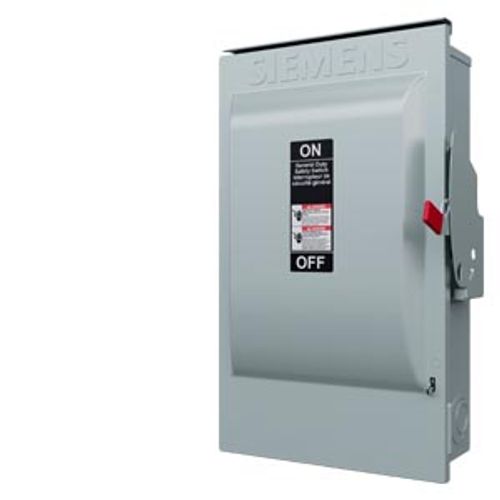

200A 3P3W Low Voltage Circuit Protection Non-Fused General Duty Safety Switch, NEMA 3R Enclosure (240V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$626.69 each
Out of Stock
Get it Wed, Jul 22 - Wed, Jul 29
MANUALS (1)
This item replaces: GNF324R
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
200 Amps
240v
Outdoor
Description
–
VBII General Duty Safety Switch
Standards and Ratings
- UL and CUL Listed under file #E47764
- Meets UL98 for switches and UL 50 for enclosures
- Meets NEMA Standard KS-1 for enclosed switches
- Rated 10,000 AIC with Class H fuses or 100,000 AIC with Class R or T fuses
- Suitable for use as service entrance equipment in the US
- Supports 2020 NEC 230.62 compliance with addition of line side barrier kit
Features
- Quick-make and break switching action
- Double break visible blade design
- Highly visible ON/OFF indication
- Rugged installer friendly enclosure design
- Modular design allows quick and easy replacement of parts
- Single cover interlock
Specs
–
| Amperage: | 200 |
|---|---|
| Voltage: | 240v |
| NEMA Rating: | 3R |
| Installation Type: | Outdoor |
| Poles: | 3 |
| Product Type: | Safety Switch |
