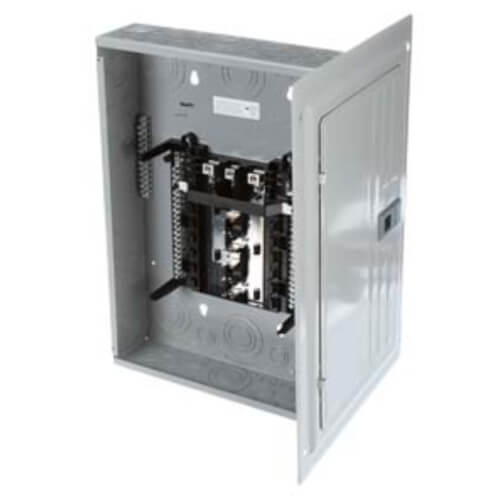

PL Series Indoor Main Lug Load Center w/ Copper Bus, 3-Phase, 12 Spaces/24 Circuits (120/240V, 125A)

Overview
Siemens low voltage pl series load center. main lug with 12 1-inch spaces allowing max 24 circuits. 3-phase 4-wire system rated 120/240v or 120/208v (125a) 100ka interrupt. special features: copper bus, interchangeable main, gray trim, nema type1 enclosure for indoor use. .

Product Features

• 3-phase 125 Amp main lug load center with 12 spaces/24 circuits
• Features Siemens patented insta-wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
• Copper bus
• All devices are provided with 2 factory installed ground bars
• Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
• All PL series devices convertible from main lug to main breaker and vice versa
• Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws
• A rigid, sturdy base pan provides the ruggedness required for the harshest applications
• NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist

Product Specifications

• Electrical Product Type: Main Lug/ Main Lug Kit
• Indoor/Outdoor: Indoor
• Load Center Mounting Type: Flush, Surface
• Load Center Type: Main Lug
• Maximum Amperage (amps): 125
• Mounting Type: Bolt On
• NEMA Configuration: NEMA 1
• NEMA Configuration Receptacle: No Receptacle
• Number of Circuits: 24
• Number of Spaces: 12
• Phase Type: 3 Phase
• Product Weight (lb.): 23 lb
• Returnable: 90-Day
• Voltage (volts): 240
• Certifications and Listings: UL Listed
