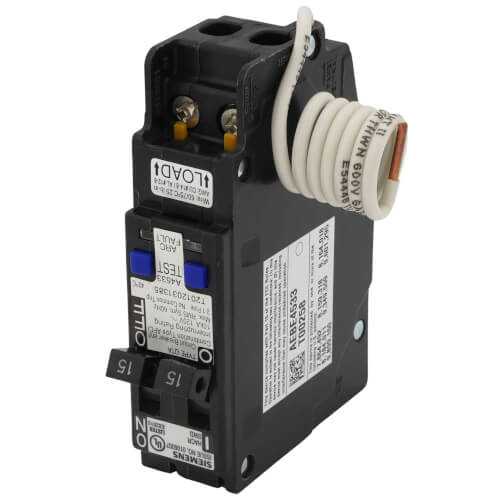

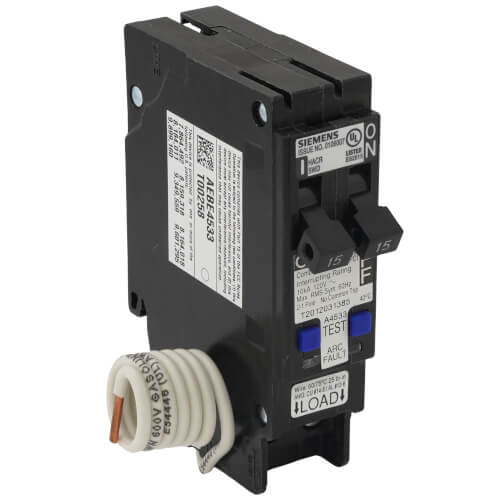

1-Pole Tandem (CAFCI) Circuit Breaker (120V, 15A) UL Type QTA

Single Pole Tandem (CAFCI) Circuit Breaker. This new technology created by Siemens expands the capabilities of the CAFCI by feeding two separate circuits from one breaker position – saving both space in the load center and time in implementation, all while maintaining safety and compliance. This is ideal for new construction or renovations.

Product Features:

• One breaker feeds two circuits to save on space and time
• Detects all 3 possible types of arc faults: line-to-ground, line-to-neutral and series arcs
• Installed indicator flags disappear when the load wires are inserted correctly
• Load Lug(s) only providing quick and easy installations
• Trusted Plug-on Neutral connection
• LED indicators for troubleshooting
• Insta-wire connectors

Specifications:

• UL Type: QTA
• Number of Poles: 1
• Continuous current rated value: 15 A
• Connection Type: Pigtail
• AIC: 10,000
• Standard: UL Listed, National Electrical Code (NEC®) 210.12 compliant, HACR and SWD rated
• Depth: 6"
• Height: 6.5"
• Width: 1.5"
