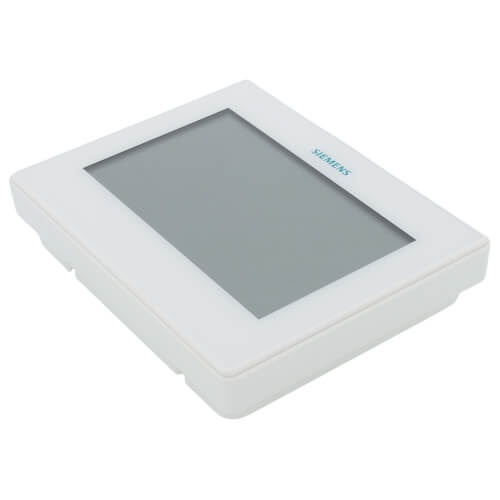

Commercial Room Programmable Thermostat (24 Vac)

The Siemens Series RDY2000 Commercial Room Thermostat is designed for light commercial HVAC systems that utilize 24 Vac control circuitry. It is compatible with forced air, hydronic, or steam systems fired by gas, oil or electricity. The thermostat can control up to three stages of heating and three stages of cooling in a conventional system and heat pumps systems with up to two compressors and two stages of auxiliary heat. The RDY2000 can interface with remote sensors and devices to completely manage all aspects of room comfort, including temperature, humidity, and air quality

Features

• Sleek design with backlit 5" LCD touch screen
• Separable back plate with wiring terminals and mounting holes configured to match most conduit box configurations (screws and anchors included for drywall mounting).
• Thermostat secures to mounting base with screws to deter theft and vandalism.
• Set-up Wizard enables rapid system configuration
• Fully programmable scheduling function:
  - 5+2 / 5+1+1 / 7-day capability
  - Two or four periods per day
• Real time clock retains time and date for up to 48 hours upon loss of input power
• System configuration data is stored indefinitely upon loss of input power
• Interlocks and timers specifically designed for equipment protection
• Password protected installer set-up menu deters unauthorized changes
• Programmable fan enables fresh air circulation when not in heating/cooling mode
• Selectable lockout levels to minimize tampering with setpoints and schedule.
• Programmable service reminders for humidifier pad, UV lamp, and air filter
