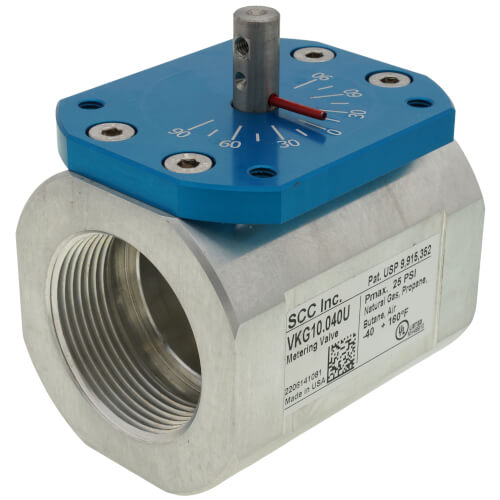

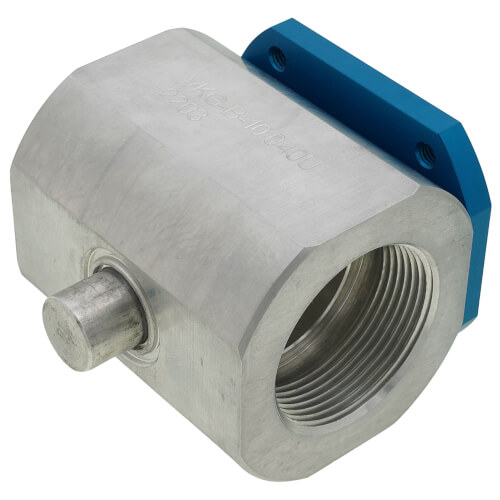

1-1/2" Full Port Butterfly Valve (25 PSIG)

VKG series threaded butterfly valves control the flow of natural gas, propane, butane, or air. VKG series butterfly valves control the flow of natural gas, propane, butane, or air. Valves are positioned using either a manual kit, crank arm kit, or rotary actuator. The butterfly valves are not intended for use as shutoff valves. The valve body contains (2) identical female pipe threads for a gas tight seal with piping. Full, medium, and reduced port sizes are offered to optimize control.

Product Features

• UL approved, 1/2" to 4" NPT threaded
• CE approved, 1/2" to 3" Rp threaded
• Full, medium, or reduced port versions available to optimize pressure drop and flow control
• Shaft supported by precision bearings for repeatable performance
• Low leakage rate at full closed position without a beveled disk
• Low pressure drop at the full open position
• Corrosion-resistant for outdoor applications

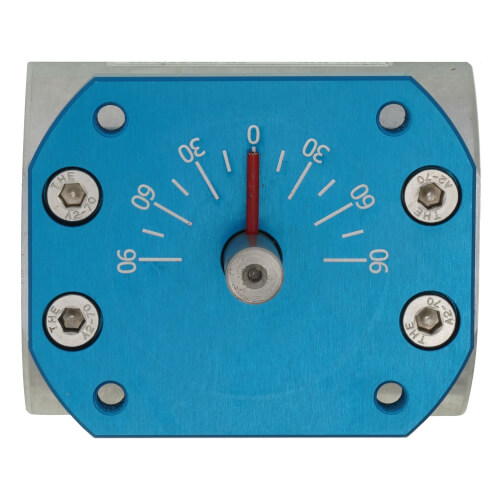

• Clear position indication on a 2" laser-etched, anodized dial
• 90° clockwise or counterclockwise rotation
• Manual kits available for fixed position adjustment
• Crank arm kit available for linkage applications
• Valve actuator assemblies available (Document No. VA-1000)
• Flow in either direction.

Specifications

• Port Size: Full Port
• Pipe Size: 1-1/2"
• Thread Type: NPT
