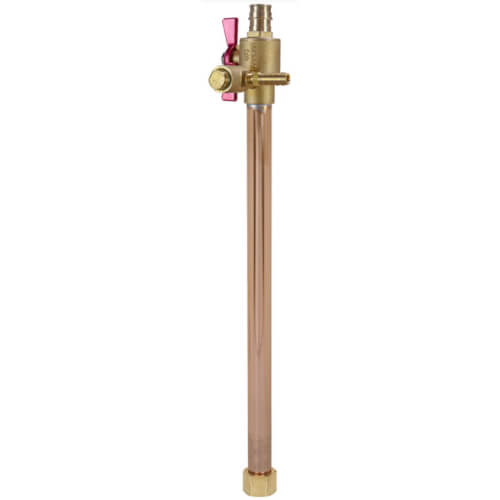

18" Length, 3/4" FIP Swivel Inlet x 3/4" Expansion PEX Valve w/ 1/2" Expansion PEX Thermal Expansion Relief (No Lead)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$48.35 each
In Stock
Get 9 Tomorrow, Jun 9
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
FIP Swivel x ProPEX Connection
18"
3/4"
FIP Swivel
3/4"
Expansion PEX
Description
–
**Image may not represent actual product. **
Sioux Chief 633 Series water heater connectors with thermal expansion relief valve. 18" Length, 3/4" FIP Swivel Inlet x 3/4" Expansion PEX Valve w/ 1/2" Expansion PEX Thermal Expansion Relief (No Lead)
This product shall be used in plumbing systems for safe distribution of hot or cold water. Thermal expansion relief valve shall discharge water and excess pressure as needed to prevent explosions or other damage to the water heater or surrounding structure. Discharged water shall be directed through an outlet line to the floor drain or water heater pan. Connectors shall be used for fluid communication with plumbing devices and fixtures. Valve connections shall conform to appropriate standards including ASTM fitting end specifications.
Overview:
Valve: SCC/DZR resistant brass, PTFE seats, stainless steel springs, EPDM o-rings and relief seat, anodized aluminum handle
Tube: 3/4" Nom. copper tube
Swivel Nut: C360 brass with EPDM gasket
FIP swivel nut with gasket is a dielectric fitting
Features:
Sioux Chief 633 Series water heater connectors with thermal expansion relief valve. 18" Length, 3/4" FIP Swivel Inlet x 3/4" Expansion PEX Valve w/ 1/2" Expansion PEX Thermal Expansion Relief (No Lead)
This product shall be used in plumbing systems for safe distribution of hot or cold water. Thermal expansion relief valve shall discharge water and excess pressure as needed to prevent explosions or other damage to the water heater or surrounding structure. Discharged water shall be directed through an outlet line to the floor drain or water heater pan. Connectors shall be used for fluid communication with plumbing devices and fixtures. Valve connections shall conform to appropriate standards including ASTM fitting end specifications.
Overview:
Features:
- Inlet Connection: 3/4" FIP swivel
- Valve Outlet Connection: 3/4" F1960 Expansion PEX
- Thermal Relief Connection: 1/2" F1960 Expansion PEX
Specs
–
| Connection Type: | FIP Swivel x ProPEX |
|---|---|
| Length: | 18" |
| Type: | Straight |
| Inlet Size: | 3/4" |
| Inlet Type: | FIP Swivel |
| Outlet Size: | 3/4" |
| Outlet Type: | Expansion PEX |
| Relief Valve: | 1/2" |
| Connection Method: | ProPEX |
| Length (Inches): | 18" |
| Material: | Copper Brass |
| Max Temp (F): | 180°F |
| Lead Free: | Yes |
