TR-30 WU - 104,000 BTU Output Knockdown Package Water Oil Boiler w/o Burner
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
36380151 has been discontinued
Discontinued March 21, 2019
This product has been discontinued.
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
–
Oil
Atmospheric
10 Year Limited Warranty
Hydronic (Water)
31.875" Height
140000 BTUs
Description
–
Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.
Note: Product Title reflects this boiler's IBR Net Output Rating
Oil, Knockdown Package Water Boiler Without Burner, 104 MBH Net IBR, 120 MBH DOE, 140 MBH Burner, 84.4% AFUE, 6 Inch Flue Outlet, Slant/Fin TR Series
The Intrepid boiler is designed to protect against the adverse effects of changing operating conditions. Many boilers suffer from poor combustion and soot buildup when their setup conditions are changed by cold oil, cold air or changes in chimney draft. The contoured shape of Intrepid’s heat exchanger has one of the lowest draft losses in the industry. This supports stable combustion. Burners are configured for each specific model to provide smooth, clean, efficient operation. Unlike most oil boilers , Intrepid’s push nipples are located to the side, out of the way of the flue gasses. This creates more uniform heat transfer, minimizes draft loss and reduces soot build-up
Features:
Note: Product Title reflects this boiler's IBR Net Output Rating
Oil, Knockdown Package Water Boiler Without Burner, 104 MBH Net IBR, 120 MBH DOE, 140 MBH Burner, 84.4% AFUE, 6 Inch Flue Outlet, Slant/Fin TR Series
The Intrepid boiler is designed to protect against the adverse effects of changing operating conditions. Many boilers suffer from poor combustion and soot buildup when their setup conditions are changed by cold oil, cold air or changes in chimney draft. The contoured shape of Intrepid’s heat exchanger has one of the lowest draft losses in the industry. This supports stable combustion. Burners are configured for each specific model to provide smooth, clean, efficient operation. Unlike most oil boilers , Intrepid’s push nipples are located to the side, out of the way of the flue gasses. This creates more uniform heat transfer, minimizes draft loss and reduces soot build-up
Features:
- Type: Knockdown Package
- Series: TR
- Fuel Type: Oil
- Net IBR Rating: 104 MBH
- DOE Heating Capacity: 120 MBH
- Burner Capacity: 140 MBH
- AFUE Rating: 84.40%
- Flue Outlet Size: 6"
- Housing Material: Cast Iron
- Dimensions: 27-5/8" Length
- For residential to light commercial requirements
- Domestic hot water coil optional
- Robust cast-iron heat exchanger
- Installer-friendly features
- More Btu's per section than ordinary boilers
- Metal push nipple to connect individual sections
Specs
–
| Fuel Type: | Oil |
|---|---|
| Efficiency: | 86% |
| Height (Inches): | 31.875" |
| System Type: | Hydronic (Water) |
| Vent Type: | Atmospheric |
| BTU Input: | 140000 |
| DOE Rating: | 120000 |
| IBR Rating: | 104000 |
| Warranty: | 10 Year Limited |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Need help calculating?
Use Our Calculator1 Replacement Part
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-2 of 2 reviews

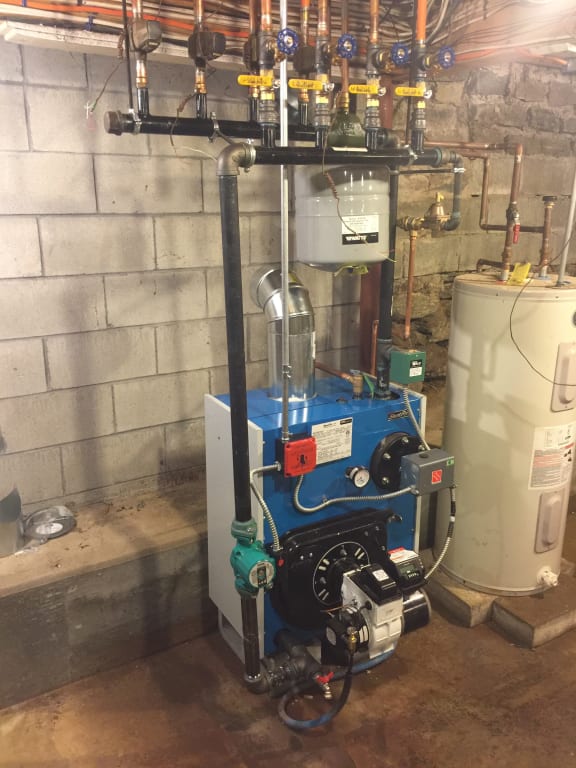

Another happy install
Another happy customer using the slant fin boiler, took a long time to get, but overall worth it. Overall easy to install, highly recommend.
DanTheBoilerMan
Webster, ma
8 years ago
Was this review helpful to you?
Excellent value for budget boiler
My first time ordering a slant fin boiler, here are my thoughts..
First this boiler is the intrepid TR-30 with multi firing rates, it can be used in most residential applications
What is included with this Knockdown package is a Honeywell high/low controller, 1/2 long well, 3/4 pressure relief valve, flue brush, drain, armored cable wiring, and black iron fittings
The boiler jacket is not installed when delievered, it comes in a separate box, I like this so you don't damage it bringing to where it needs to go, of course all the mounting hardware is included.
Now I've installed a lot of boilers, and overall besides it being blue, I do not see any difference in terms of operation, I consider this boiler an excellent value, understanding that is dose not come with a burner or circulator pump. I plan to purchase many more to help save People money.
DanTheBoilerMan
Webster, ma
9 years ago
