5/8" Swage Union

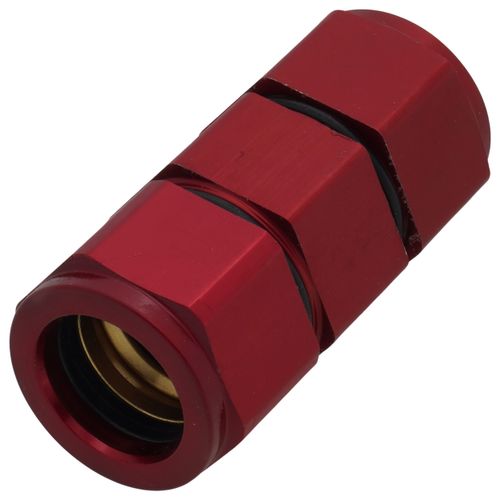

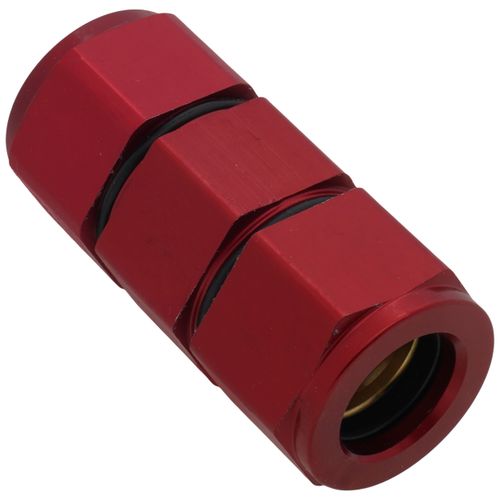

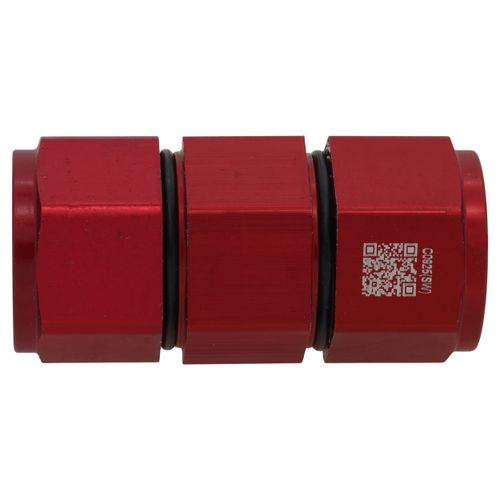

5/8" Swage Union (SWUN5800) - SmartLock Swage Fitting
Connect 5/8" copper or aluminum tubes to swage valves without brazing or flaring. SmartLock SWUN5800 uses patented metal-to-metal sealing technology for permanent zero-leak joints under any pressure or temperature. Standard wrenches align and tighten components automatically, letting technicians skip open flames and finish installs faster.

What's in the Box (pre-assembled)

• One SmartLock SWUN5800 union body
• Two union nuts
• Two ferrules
• One positioning strip

Key Features

• No brazing or flaring required. Tighten nuts to seal tubes to valves without heat or flame.
• Automatic alignment. Positioning strip holds ferrules and body in perfect alignment for smooth assembly.
• Metal-to-metal seal. Compression ferrules deform to seal under high pressure for lasting leak-free joints.
• Over-torque prevention. Built-in stops prevent nuts from overtightening and damaging the fitting.
• Corrosion-resistant finish.

Compatibility

• Works with all common refrigerants including R-410A R-22 R-134a R-744 R-717 and A2L blends.
• Suitable for copper-to-copper copper-to-aluminum and aluminum-to-aluminum connections.

Installation & Tools

• Tools needed. Standard open-end or adjustable wrenches only.
• Installation tip. Hand-start nuts on tubes and valve then wrench-tighten until the fitting's torque stop engages.
