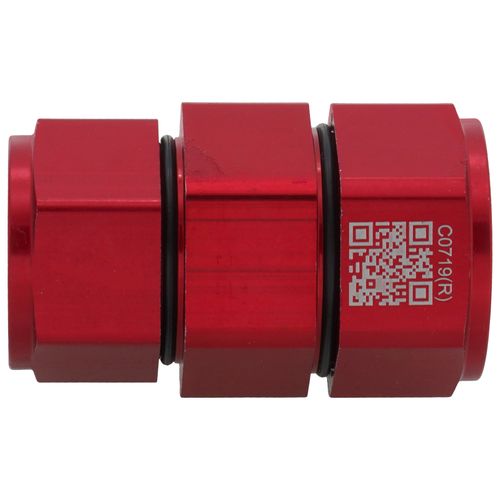

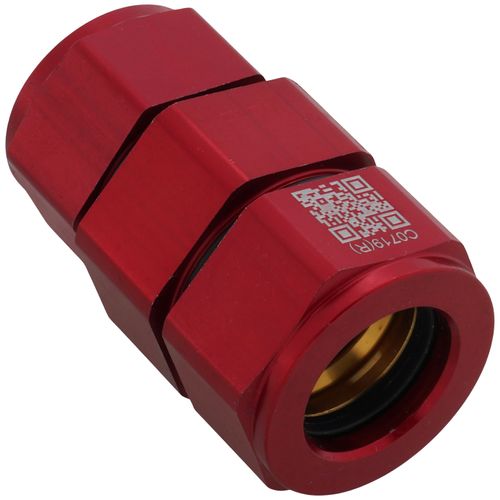

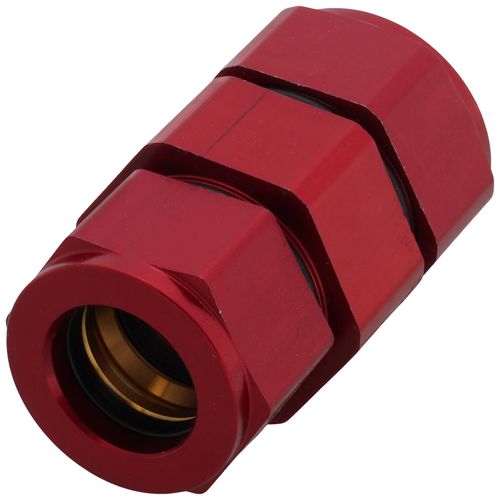

7/8" x 3/4" Union Reducer

7/8"x3/4" Union Reducer (UNRD7834)-SmartLock Compression Fitting
Join a 7/8" tube to a 3/4" tube without brazing or flaring. SmartLockUNRD7834 uses patented metal-to-metal sealing technology for permanent, zero-leak joints under pressure. Standard wrenches align and tighten components automatically, letting technicians skip open flames and finish jobs faster.

What's in the Box (pre-assembled)

• One SmartLockUNRD7834 reducer body
• Two union nuts
• Two ferrules
• One positioning strip

Key Features

• No brazing or flaring required. Tighten nuts to seal tubes without heat or flame.
• Automatic alignment. Positioning strip holds ferrules and body in perfect alignment for smooth assembly.
• Metal-to-metal seal. Compression ferrules deform to seal under high pressure for lasting, leak-free joints.
• Over-torque prevention. Built-in stops prevent nuts from overtightening and damaging the fitting.
• Corrosion-resistant finish.

Compatibility

• Works with all common refrigerants, including R-410A, R-22, R-134a, R-744, R-717 and A2L blends.
• Suitable for 7/8"-to-3/4" copper-to-copper, copper-to-aluminum and aluminum-to-aluminum connections.

Installation & Tools

• Tools needed. Standard open-end or adjustable wrenches only.
• Installation tip. Hand-start nuts on tubes, then wrench-tighten until the fitting's torque stop engages.
