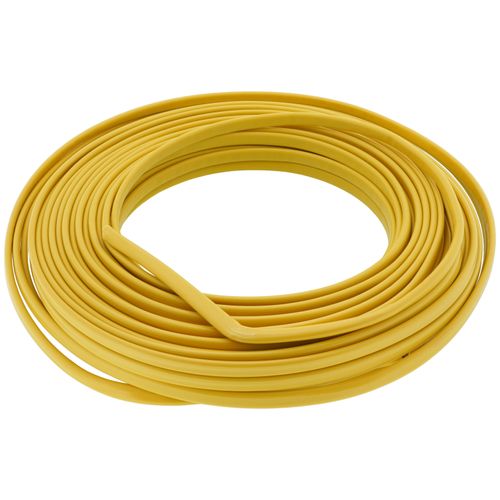

12-2 Yellow Romex® SIMpull Type NM-B Cable, w/ Ground (100' Coil)

Southwire® Romex ® Brand SIMpull® NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in the National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts.

Specifications:

• Voltage rating: 600 volts
• Construction: 12 AWG 2C SOL
• Outer Jacket / Armor Color: Yellow
• Conductor Color: Black/White
• Packaging: 100 Ft Coil
• Size: (AWG OR KCMil): 12 AWG
• No. of Conductors: 2
• No. of Strands: 1
• No. of Grounds: 1
• Nom. Width (mils): 422
• Nom. Height (mils): 186
• Insulation Thickness (mils): 15
• Nominal Total Weight (lbs/1000'): 8.7 lbs/100'
• Allowable Ampacity: 20
• UPC #: 032886263095
